Key Data

Model	SM-01
Voltage	5V
Color	Black
Installation Direction	Right
Sensor Pulses	5/6/8

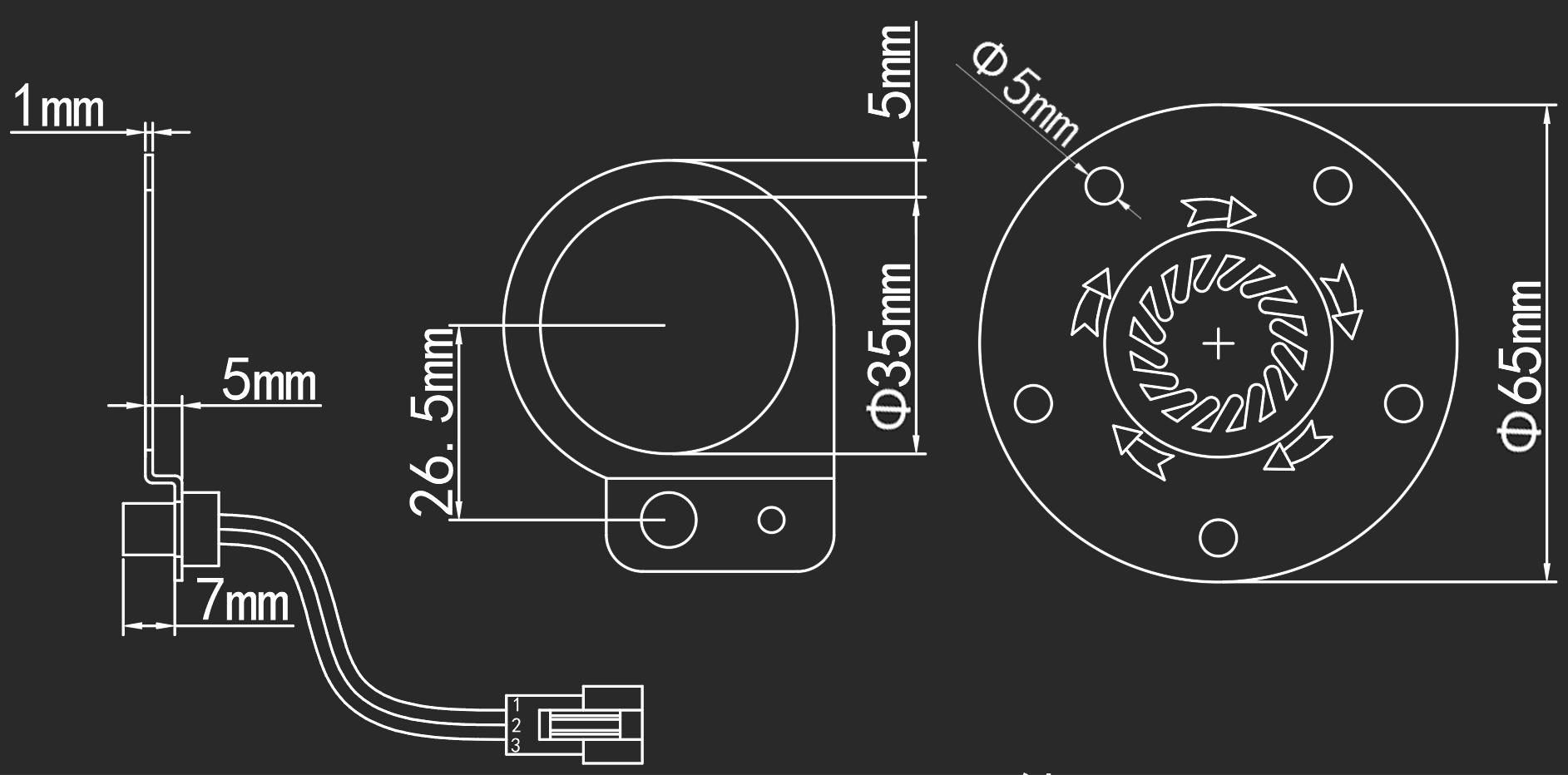

Specification	Φ65/Φ75/Φ85mm
IP Class	IP67
Quiescent Current	＜ 5mA
Material	ABS

　

Download：

SM-01 Technical Specification-V1.0
