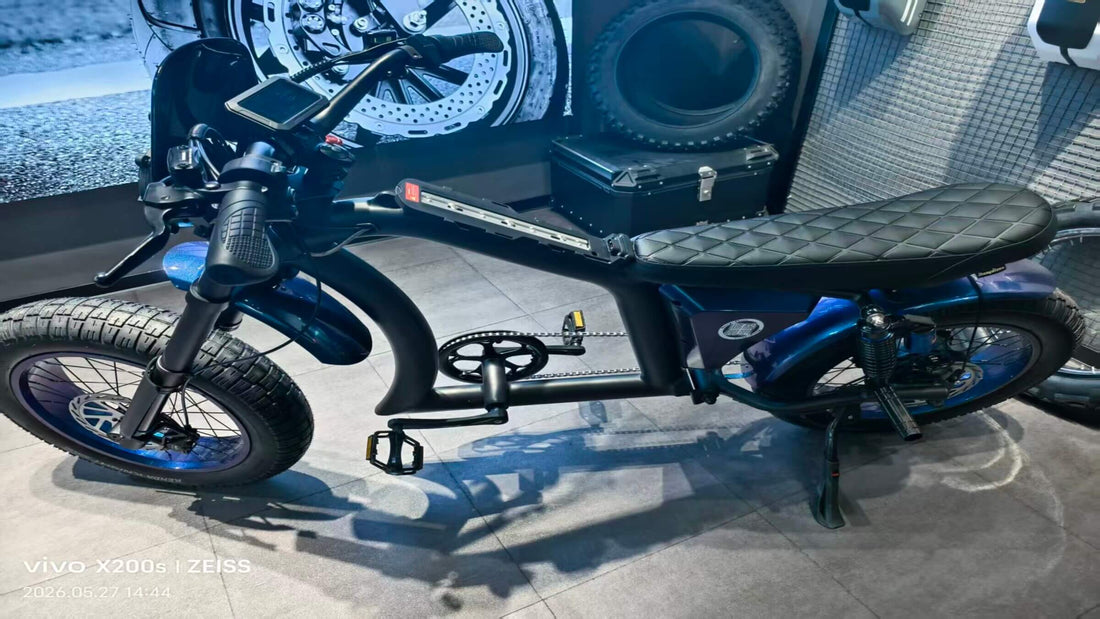

E-Bike Cadence Sensor Compatibility: 8 Things to Check Before Buying

When an e-bike cadence sensor stops working, replacing it may seem straightforward. Find a sensor that looks similar, check the connector, and install it. But a replacement PAS sensor can look almost identical to the original and still be incompatible with the bike.

Connector style, magnet count, cable length, wiring sequence, plug gender, and installation side can all affect whether a sensor fits and works correctly. The controller also needs to support the sensor's electrical and signal requirements.

Before ordering a replacement, check the following eight details. A few photos and measurements can save you from buying the wrong part.

First, What Does an E-Bike Cadence Sensor Do?

A cadence sensor, often called a PAS (Pedal Assist System) sensor, detects when the rider turns the pedals. It typically uses a magnetic ring and a pickup sensor to detect pedal rotation and send signals to the e-bike controller.

When the controller receives a valid pedaling signal, it can activate the motor according to the selected pedal-assist level and the system's programming.

A cadence sensor is different from a torque sensor. A cadence sensor detects pedal movement, while a torque sensor measures how much force the rider applies to the pedals. They are not interchangeable unless the controller and the rest of the e-bike system are designed to support the replacement type.

8 Things to Check Before Buying a Replacement PAS Sensor

1. Connector Type: SM Plug or Waterproof Round Plug

One of the first things to check is the connector. E-bike PAS sensors may use different connector styles, even when they perform the same basic function.

Two common examples are:

• SM plug: A rectangular plastic connector commonly used on e-bike wiring harnesses.
• Waterproof round plug: A circular connector designed to provide a more weather-resistant connection when properly mated.

These connector types are physically different and generally cannot be plugged directly into each other. Do not assume that a sensor will fit just because it has the same number of pins.

Before ordering, compare the connector on your original sensor with the replacement. Check its shape, size, pin count, and keying. A clear photo of the connector from the front can help identify the type.

2. Magnet Count: Check the Number of Magnets

The magnetic ring used by a cadence sensor can have different numbers of magnets. Depending on the sensor design, you may see configurations such as 1, 6, 8, or 12 magnets.

The magnet count affects how many magnetic pulses the sensor detects during each pedal rotation. The controller uses these signals to interpret pedaling activity, so a different magnet count may change how the system responds.

A sensor with more magnets is not automatically better, and a higher magnet count does not guarantee compatibility. The replacement should match the requirements of the original system or be confirmed as supported by the controller.

When checking your original sensor, count the magnets on the ring if they are visible. If the ring is enclosed or difficult to inspect, take a clear photo and ask the supplier to help identify the configuration.

3. Cable Length: Make Sure It Reaches the Connection Point

PAS sensors are available with different cable lengths. The correct length depends on the frame design, sensor mounting position, cable routing, and where the sensor connects to the controller or wiring harness.

A cable that is too short may not reach the connection point. A cable that is unnecessarily long can be harder to route neatly and may need to be secured away from moving parts.

Measure the cable on your original sensor from the sensor body to the end of the connector. Do not estimate based only on the product photo, because perspective can make cables look longer or shorter than they are.

Also consider the actual routing path on your bike. The cable needs enough length to follow the frame without being stretched, pinched, or placed near the chain, crank, or wheel.

4. Wiring Sequence: Matching Pin Count Is Not Enough

This is one of the most important electrical checks.

Two PAS sensors may both have three-pin connectors, but their wire assignments may be different. The power, ground, and signal positions must match the requirements of the controller.

Wire colors can provide a clue, but they are not a reliable universal standard. Different manufacturers and systems may use different color conventions or pin assignments.

Before connecting a replacement sensor, confirm:

• The connector pin count and pin positions.
• The power and ground assignments, where applicable.
• The signal output type and electrical requirements.
• Whether the controller supports that sensor's signal.

Never assume that matching wire colors or a matching connector shape proves that the wiring is correct. Connecting a sensor with an incompatible pinout can cause the sensor not to work and may damage electrical components.

If you cannot confirm the wiring sequence, ask the supplier or e-bike manufacturer to verify it before connecting the sensor. A photo of the connector face and the wire side can be useful, but technical confirmation may still be necessary.

5. Male Plug or Female Plug: Check the Connector Gender

Connector gender is another detail that is easy to overlook. A replacement sensor may have the correct connector family but the wrong mating end.

For example, the original sensor may have a male connector while the replacement has a female connector, or the other way around. In that case, the two parts may not connect directly to the existing harness.

When comparing connectors, look at the actual mating contacts and housing rather than relying only on a supplier's product description. Different suppliers may use connector terminology inconsistently.

Check both sides of the connection:

• The connector attached to the original PAS sensor.
• The matching connector on the bike's wiring harness.

If possible, send photos of both connector ends. This helps avoid confusion about whether the replacement needs a male or female plug.

6. Left-Side or Right-Side Installation

Not every PAS sensor is designed for the same side of the bike. Some are made for left-side installation, while others are designed for the right side.

The installation side matters because the sensor and magnetic ring need to sit in the correct position relative to the crank and each other. A sensor designed for one side may not fit or align correctly when installed on the other.

Before buying, check where your original sensor is mounted. Look at the bike from the rider's perspective and identify whether the sensor is installed on the left or right side.

Also compare the sensor's mounting shape and the direction in which the magnetic ring is positioned. Do not rely on the cable exit direction alone to identify the installation side.

7. Physical Dimensions and Mounting Method

Even if the connector and electrical specifications match, the replacement still needs to fit the bike.

Compare the physical design of the original and replacement sensors, including:

• The inner diameter and outer diameter of the magnetic ring.
• The ring's thickness and overall shape.
• The sensor body's dimensions and mounting points.
• The available space around the crank and bottom bracket.
• The distance and alignment between the magnetic ring and pickup sensor.

The magnetic ring and pickup sensor need to be positioned according to the sensor manufacturer's installation requirements. If the gap or alignment is incorrect, the sensor may fail to detect pedal rotation consistently.

Do not assume that a ring will fit simply because it has a similar appearance. Compare its dimensions and mounting method with the original part.

8. Controller Compatibility: Confirm the Electrical and Signal Requirements

A PAS sensor does not work independently. It sends signals to the e-bike controller, and the controller needs to recognize and support those signals.

That means a sensor can have the correct connector, cable length, magnet count, and mounting style but still fail to work if its electrical specifications or signal output are incompatible with the controller.

When possible, identify the controller model and check the sensor specifications against the controller manufacturer's documentation. Relevant details may include operating voltage, signal type, pin assignment, and supported PAS configuration.

If the bike uses a proprietary electrical system, the original bike manufacturer may be the best source for confirming which replacement sensor is supported.

Cadence Sensor vs. Torque Sensor: Are They Interchangeable?

No. A cadence sensor and a torque sensor measure different things.

• Cadence sensor: Detects whether and how the pedals are rotating.
• Torque sensor: Measures the force applied to the pedals or crank system.

They provide different types of input to the controller. Replacing one with the other is not a simple plug-and-play change. The controller, wiring, and system configuration must support the sensor type.

If you are unsure which type is installed on your bike, check the original part number, the bike's technical documentation, or ask the manufacturer before ordering.

Before You Buy: Take These 5 Photos

If you are not sure which replacement PAS sensor you need, prepare these photos before contacting a supplier. They can make it much easier to identify the original sensor and compare available replacements.

1. Full sensor and installation position: Show the sensor on the bike, including which side it is installed on.
2. Magnetic ring: Show the ring clearly so the magnet arrangement and physical shape can be checked.
3. Connector close-up: Photograph the connector from the front and wire side. Include the pins and housing.
4. Cable length: Measure the cable from the sensor body to the connector and share the measurement.
5. Letters/ markings: Photograph the the letters/markings on the sensor connector, if accessible.

If you have the original sensor's model number or part label, include that too. It can help narrow down the possible replacement options.

Why a PAS Sensor That Looks Similar May Not Work

It is common to find replacement sensors online that look very similar to the original. However, appearance alone does not establish compatibility.

For example, two sensors may both have a three-pin waterproof connector, but use different pin assignments. Another pair may have the same connector but different magnet counts or installation sides. A sensor may also fit physically but send a signal that the controller does not recognize.

For this reason, it is better to confirm the complete set of compatibility details before ordering rather than choosing a sensor based on one matching feature.

Need Help Finding the Right E-Bike PAS Sensor?

Choosing a replacement cadence sensor can involve more than matching the connector. The connector style, magnet count, cable length, wiring sequence, plug gender, installation side, physical dimensions, and controller requirements all matter.

At YolinTech, we work with e-bike electronics and replacement components. If you are unsure which PAS sensor is suitable for your bike, send us photos of your original sensor, magnetic ring, connector, cable, and controller label.

Our team can review the information available and help you identify a suitable replacement option. If compatibility cannot be confirmed from the photos alone, we will let you know what additional information is needed before you order.

Contact YolinTech before ordering if you need help checking your PAS sensor.

Frequently Asked Questions

1. Are all e-bike PAS sensors compatible with each other?

No. PAS sensors can differ in connector type, magnet count, cable length, wiring sequence, connector gender, installation side, physical dimensions, and electrical signal requirements. The controller must also support the replacement sensor.

2. Can I replace an SM plug PAS sensor with a waterproof round plug sensor?

Not necessarily. These are different connector styles and usually cannot connect directly. An adapter or a different wiring harness may be required, but the pinout and electrical specifications must be verified before making any changes.

3. Does the number of magnets matter on a cadence sensor?

Yes. The magnet count affects the number of pulses detected during each pedal rotation. The replacement should match the original system's requirements or be confirmed as compatible with the controller.

4. Can I use a PAS sensor with a different cable length?

Possibly. The cable needs to reach the connection point without being stretched, pinched, or routed near moving parts. Check the cable length and the routing path on your bike before ordering.

5. Do wire colors need to match when replacing a PAS sensor?

Wire colors alone are not enough to confirm compatibility. The pinout, power requirements, ground connection, and signal output must match the controller. Verify the wiring information before connecting the replacement.

6. What is the difference between a male and female PAS sensor connector?

They refer to the mating parts of a connector. A replacement with the wrong connector gender may not connect to the bike's wiring harness. Compare the actual contacts and housing on both sides before buying.

7. How do I know whether my PAS sensor is left-side or right-side?

Check where the original sensor is mounted relative to the crank and magnetic ring. Compare the mounting shape and alignment as well as the installation side. Do not identify the side from cable direction alone.

8. Can I replace a cadence sensor with a torque sensor?

Not as a direct replacement in most systems. Cadence sensors detect pedal rotation, while torque sensors measure pedaling force. The controller and e-bike system must be designed to support the sensor type.

9. What information should I send a supplier to check PAS sensor compatibility?

Send photos of the complete sensor and its mounting position, the magnetic ring, the connector from both sides, the cable length, and the controller label. Include the original part number if available.
