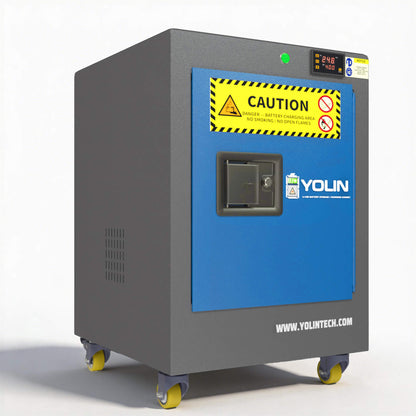

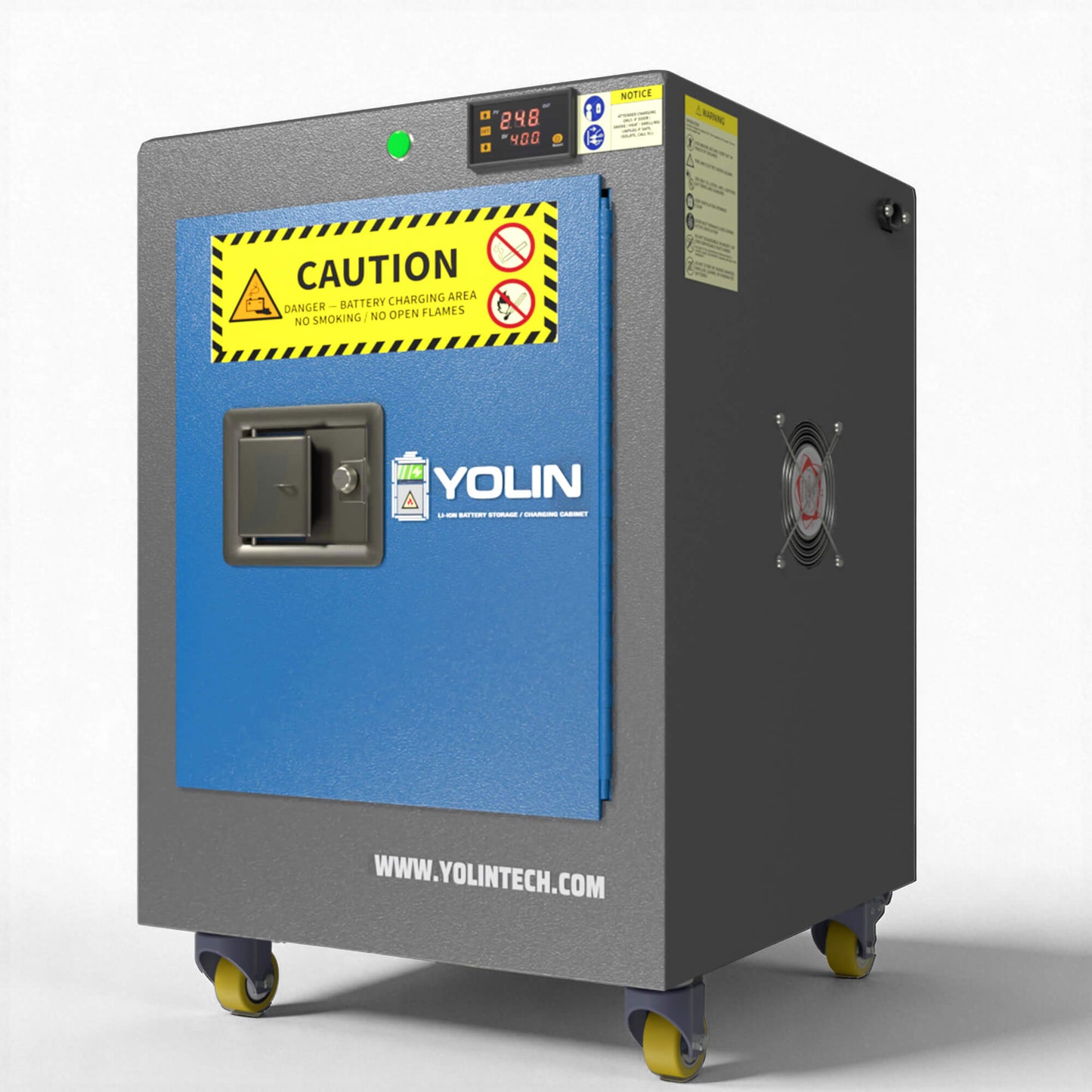

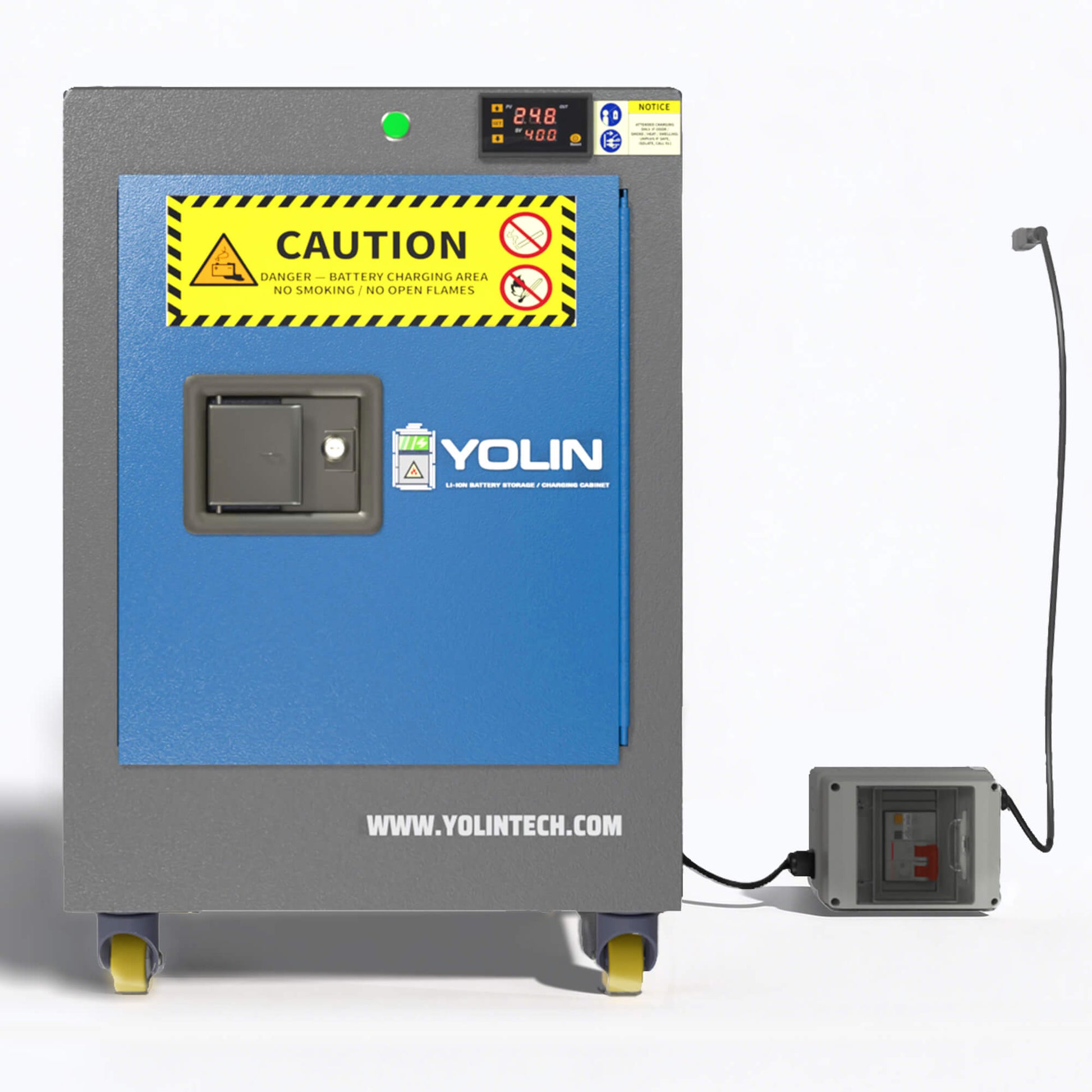

Lithium-Ion Battery Charging Cabinet – Specifications
Specifications
This lithium-ion battery charging cabinet is designed to support safer indoor charging and organized battery storage for e-bike batteries and other lithium-powered devices. Specifications below are provided to help you confirm fit, electrical compatibility, and installation requirements before purchase.
1. Electrical & Power Requirements
- Input Voltage: 120V AC, 60Hz (US version)
- Max. Power : 2200W
- Max. Current: 20A
- Integrated Power Strip: 3-outlet grounded power strip with overload and over-voltage protection
- Charging Support: Suitable for multiple standard lithium-ion battery chargers
2. Charging Capacity & Interior Fit
- Recommended Battery Type: Lithium-ion battery packs (commonly used in power tools, drones, and e-bikes)
-
Typical Charging Quantity:
- Urban model: 1–3 battery packs (compact setup)
- Workshop model: 1–6 battery packs (extended setup)
- Shelf Design: Adjustable steel shelve designed to promote airflow during charging.
- Load Rating: Designed for evenly distributed battery and charger weight
Battery Cabinet Specifications
All dimensions are shown in inches (W × D × H).
| Specification | Urban Model | Workshop Model |
|---|---|---|
| Exterior Dimensions | 18.11" W × 20.47" D × 24.41" H |
23.23" W × 18.11" D × 44.09" H |
| Interior Usable Dimensions |
13.78" W × 14.96" D × 14.96" H |
20.08" W × 14.96" D × 37.01" H |
| Shipping Dimensions | 18.11" W × 20.47" D × 24.41" H |
25.59" W × 20.47" D × 46.06" H |
| Net / Gross Weight | 46.3 lbs (21 kg) / 52.9 lbs (24 kg) |
92.6 lbs (42 kg) / 103.6 lbs (47 kg) |
| Shelf Payload | 66.13 lbs (30 kg) |
66.13 lbs (30 kg) |
| Total Payload | 198.41 lbs (90 kg) |
286.60 lbs (130 kg) |
3. Ventilation & Thermal Management
- Ventilation Type: Active cooling with high-efficiency fan
- Fan Operation: Automatic temperature-triggered activation
- Airflow Design: Supports heat dissipation during continuous or high-load charging
- Purpose: Helps reduce heat buildup and maintain a more stable charging environment
4. Detection, Alarm & Fire Response
- Smoke Detection: Integrated high-sensitivity smoke sensor
- Alarm Type: Audible early-warning alarm
- Automatic Power Cutoff: Cuts power during fault, leakage, or abnormal conditions
- Fire Suppression: Built-in heat-triggered aerosol suppression module
- Suppression Characteristics: Automatic activation
Fire suppression is designed to assist containment and response. Always follow safe charging practices.
5. Construction & Materials
- Steel Construction: 18-gauge industrial-grade steel

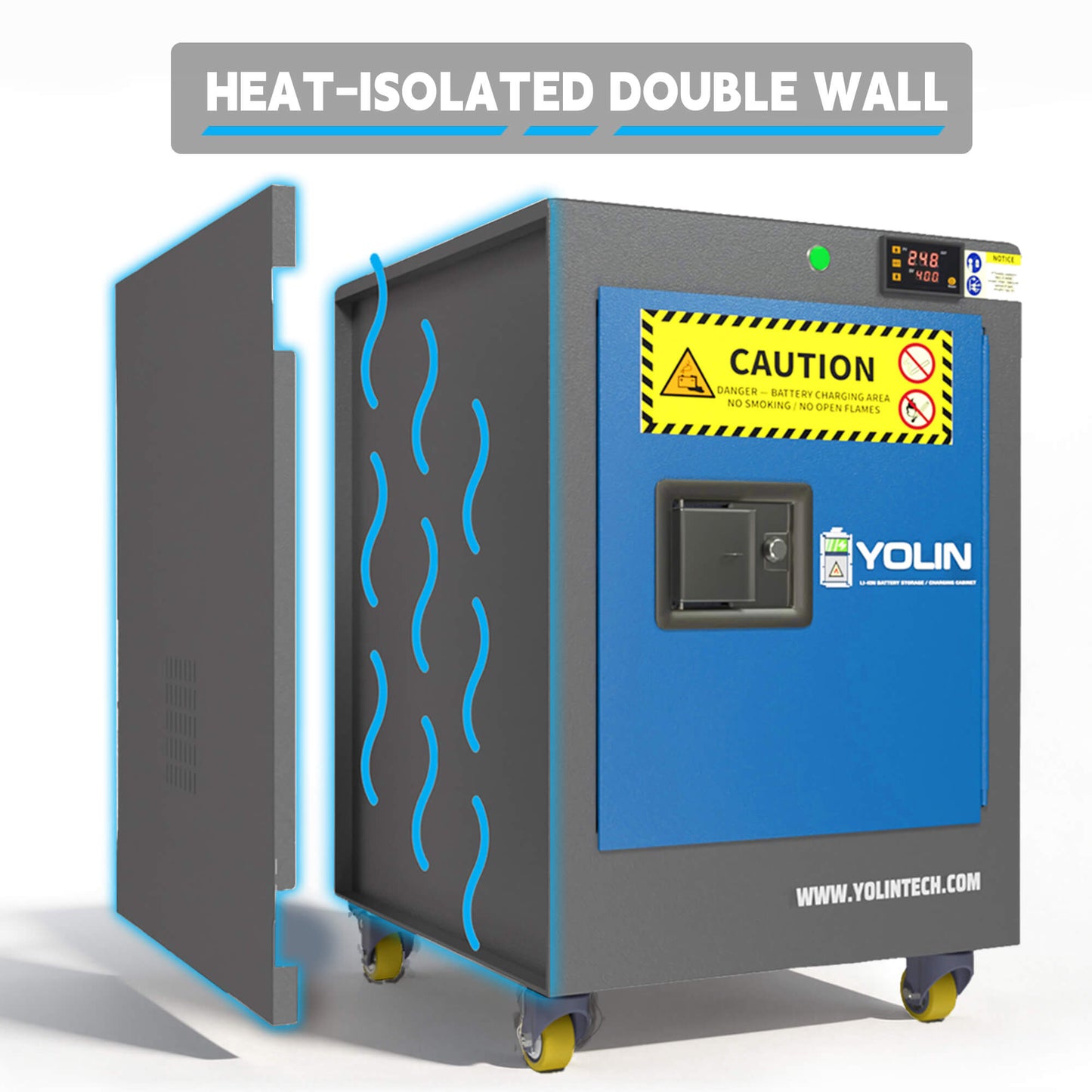

- Wall Design: Double-wall construction with air gap
- Finish: Durable powder-coated surface
- Door Hinges: Full-length heavy-duty piano hinges
-
Door Type: Manual Close
6. Grounding, Power & Cooling Components
- Grounding Connection: Dedicated grounding point to help reduce static discharge risk
- Cooling Fan: Continuous-duty fan designed for charging environments
- Internal Power Layout: Organized cable routing for chargers and adapters
7. Security, Mobility & Access
- Locking System: Flush mounted door handle – locking at three positions with two keys
- Wheel: Heavy-duty 360° Swivel Casters (2 Locking, 2 Non-locking)
- Wheel Diameter: 50mm
- Wheel Load Capacity: 50kg per wheel
- Mobility: Designed for repositioning in apartments, garages, and workshops
- Door Opening: Wide-opening doors for easy battery handling
8. Installation & Placement Guidelines
- Intended Use: Indoor environments (apartments, garages, workshops)
- Placement: Flat, stable surface with ventilation clearance
- Recommended Clearance: Allow at least 100mm (4 inches) of space at the rear and sides for ventilation.
- Not Recommended: Outdoor exposure, wet environments, damaged or swollen batteries
9. What’s Included
- Battery charging cabinet (fully assembled)
- Power Cord with Built-in GFCI Switch
- Smoke Alarm (Battery Included)
- Keys
- Casters
- Grounding Wire
10. Warranty & Support
- Warranty: 5-year warranty on structural components and a 1-year warranty on serviceable parts.
- Replacement Parts: Available for key safety components
- Support: Technical assistance available before and after purchase
- Approval: EN 14470-1 Type 90, EN 14470-2, and EN 1363-1, CE, RoHS
Before You Buy – Fit Check (Recommended)
To ensure compatibility and reduce delays, please confirm the following before ordering:
- Battery type and approximate dimensions
- Number of batteries charged simultaneously
- Charger wattage and plug type
- Installation environment (apartment / garage / workshop)
If unsure, contact our support team with photos or details and we’ll help confirm the right model.

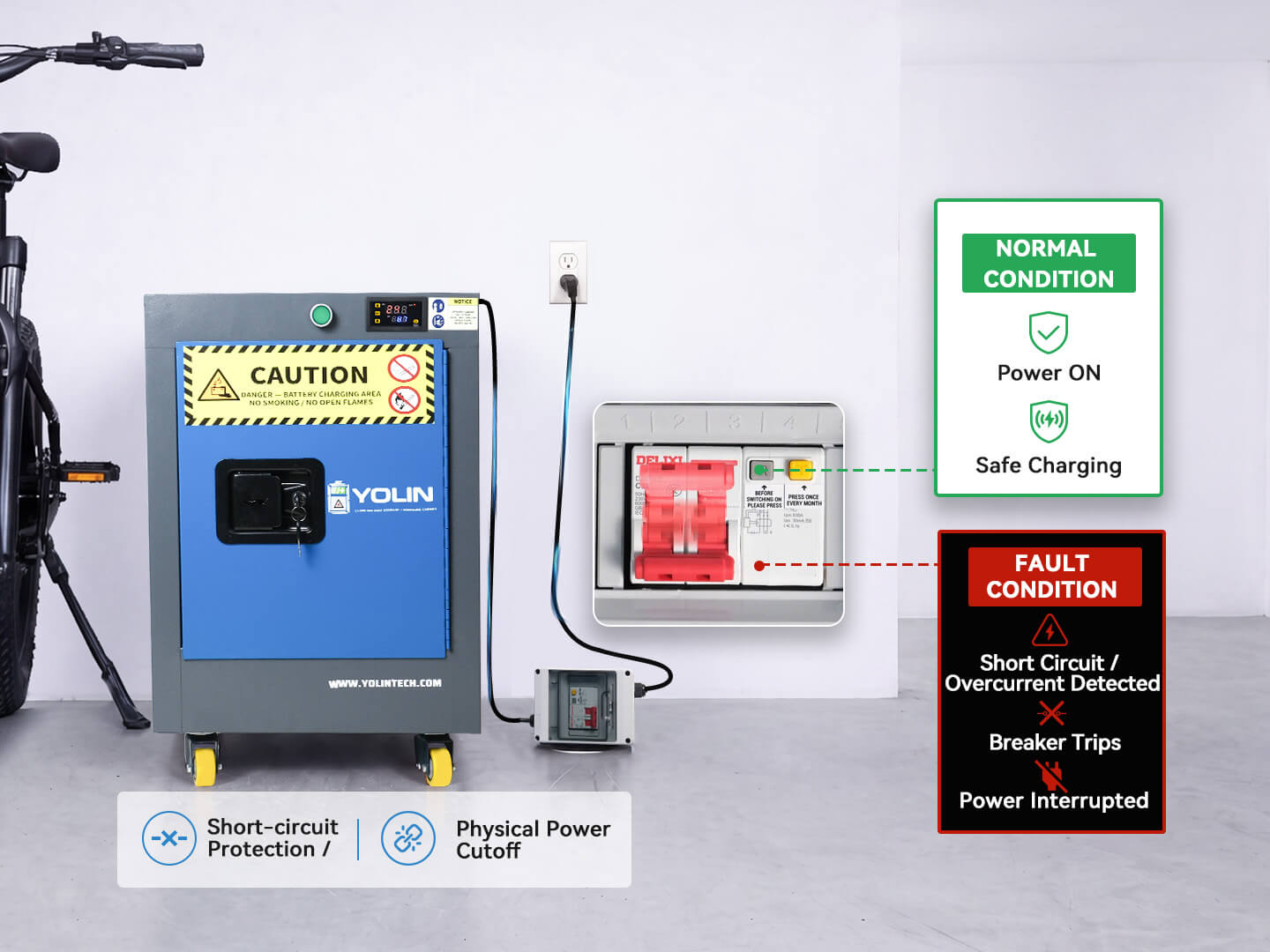

Prevention at the Source

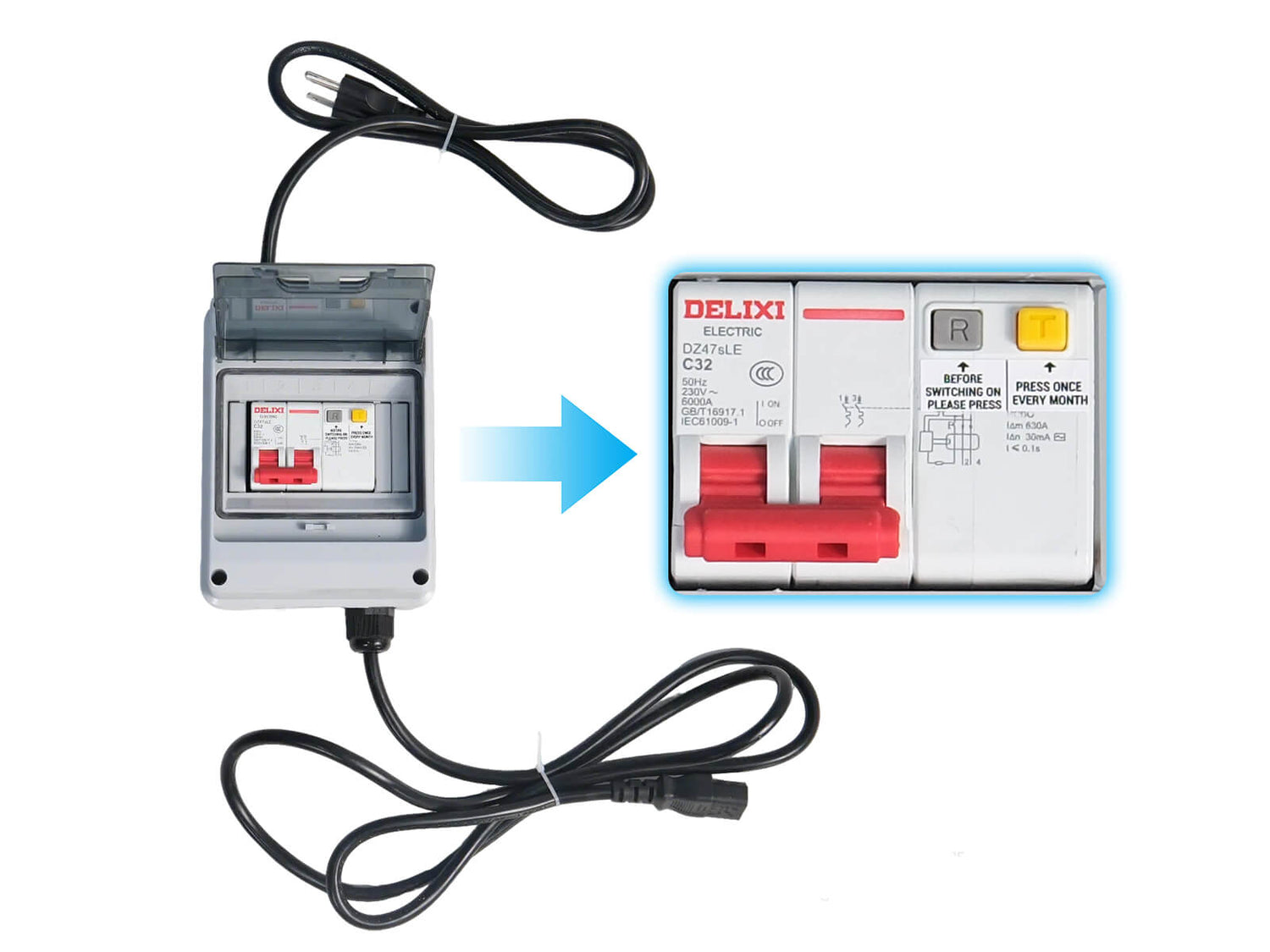

Prevention is better than suppression. The built-in circuit breaker instantly cuts power during electrical faults, short circuits, or surges. It monitors charging safety in real-time, stopping potential battery fires before they even start.
- Instant Auto-Power Cutoff
- Leakage Protection

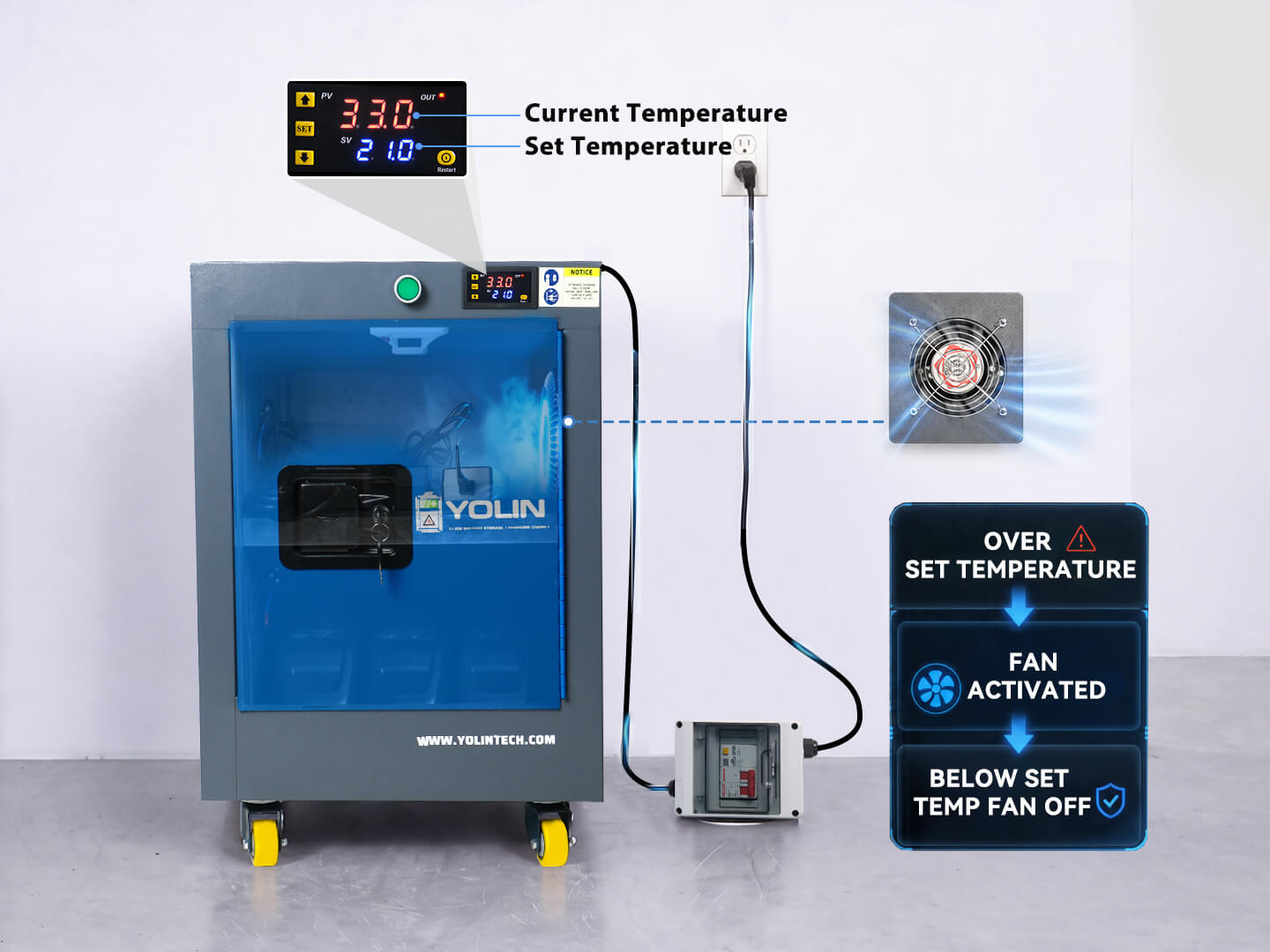

Real-Time Temperature Control
Prevents heat buildup during high-speed charging. The intelligent thermostat automatically activates the heavy-duty cooling fan when temperatures rise, maintaining an optimal environment to prevent overheating and extend your battery's lifespan.
- Smart Thermal Management
- Auto-Ventilation

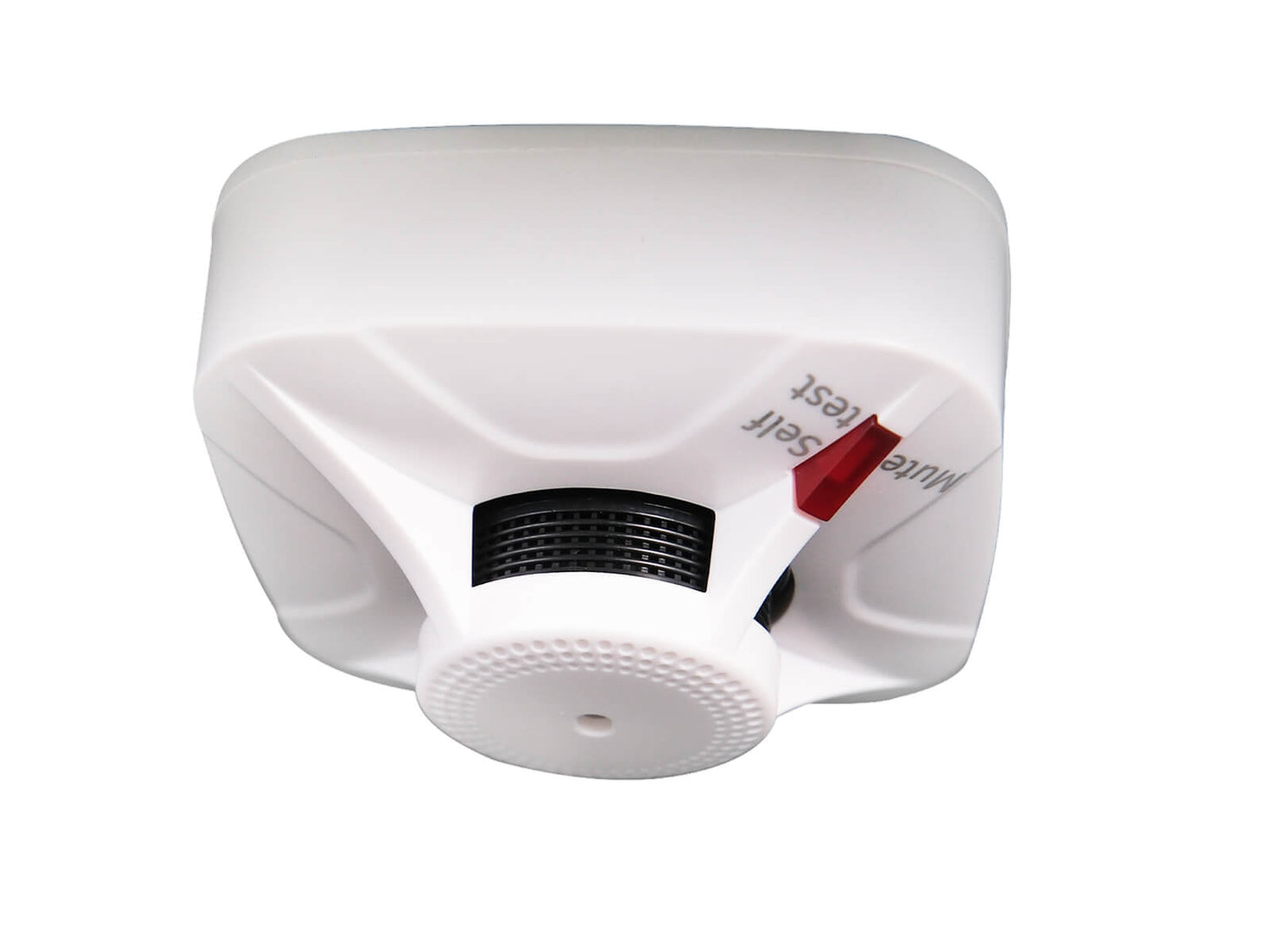

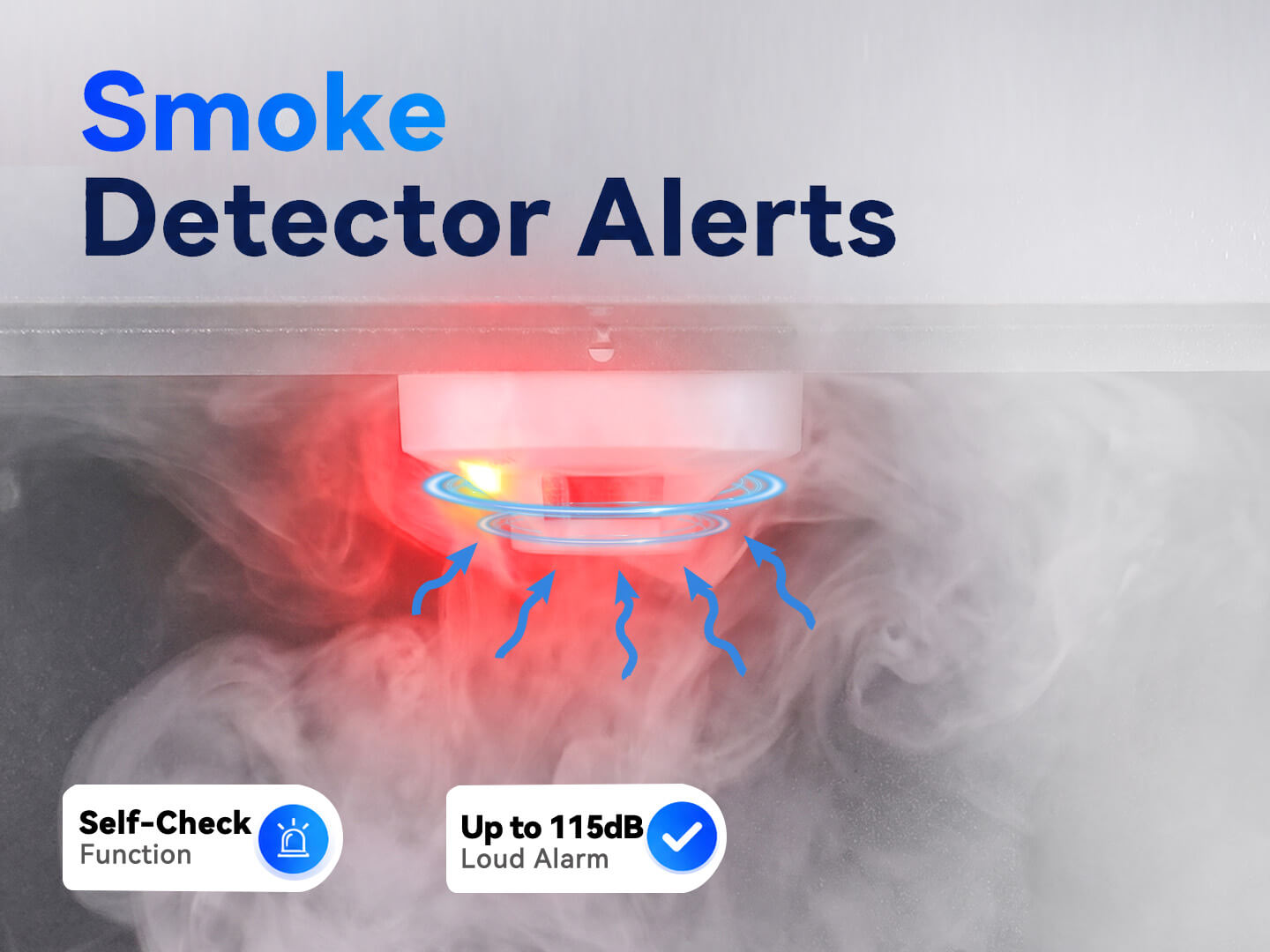

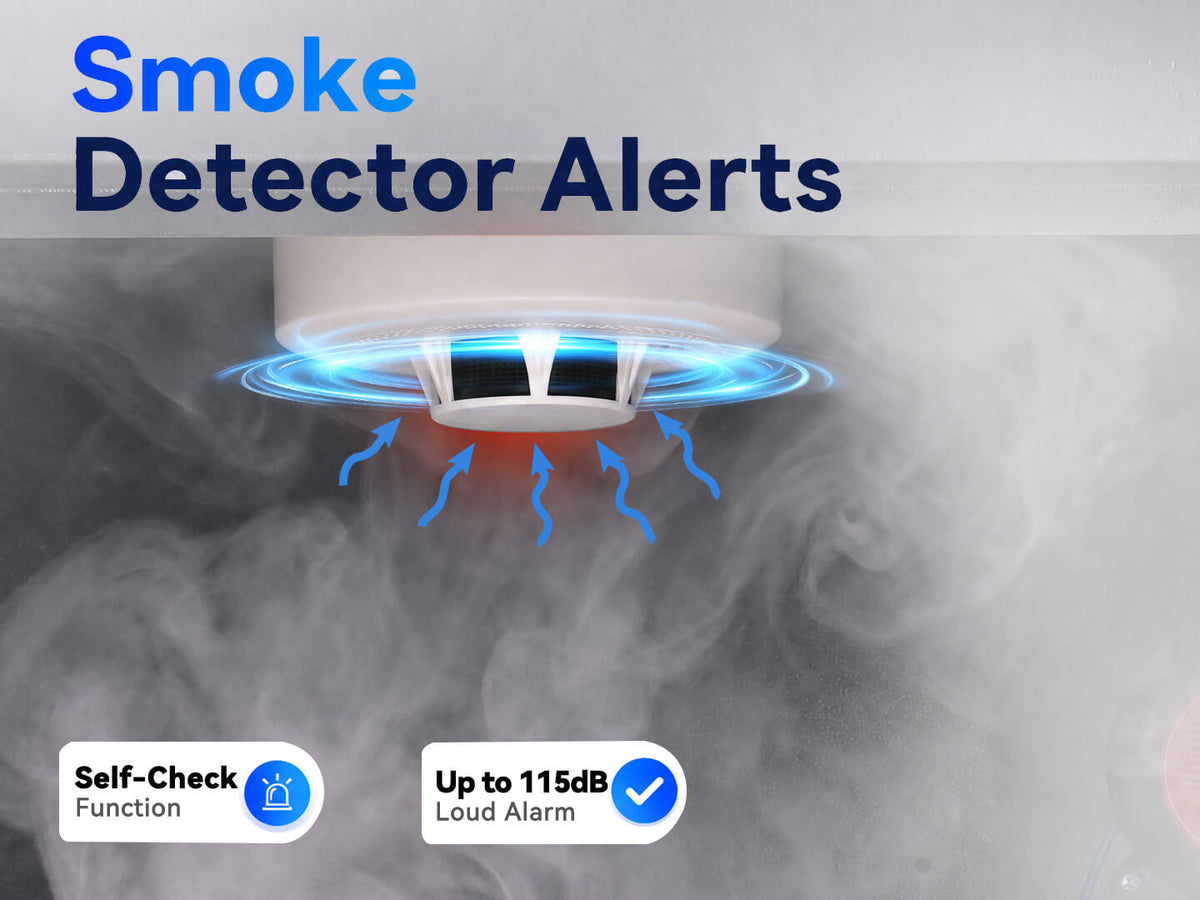

Early warning saves time — and reduces damage.
Equipped with a high-sensitivity smoke sensor that detects fire at the earliest stage. The piercing audible alarm provides precious minutes for evacuation and response before a small spark becomes a major incident.
- High-Decibel
- Early Warning

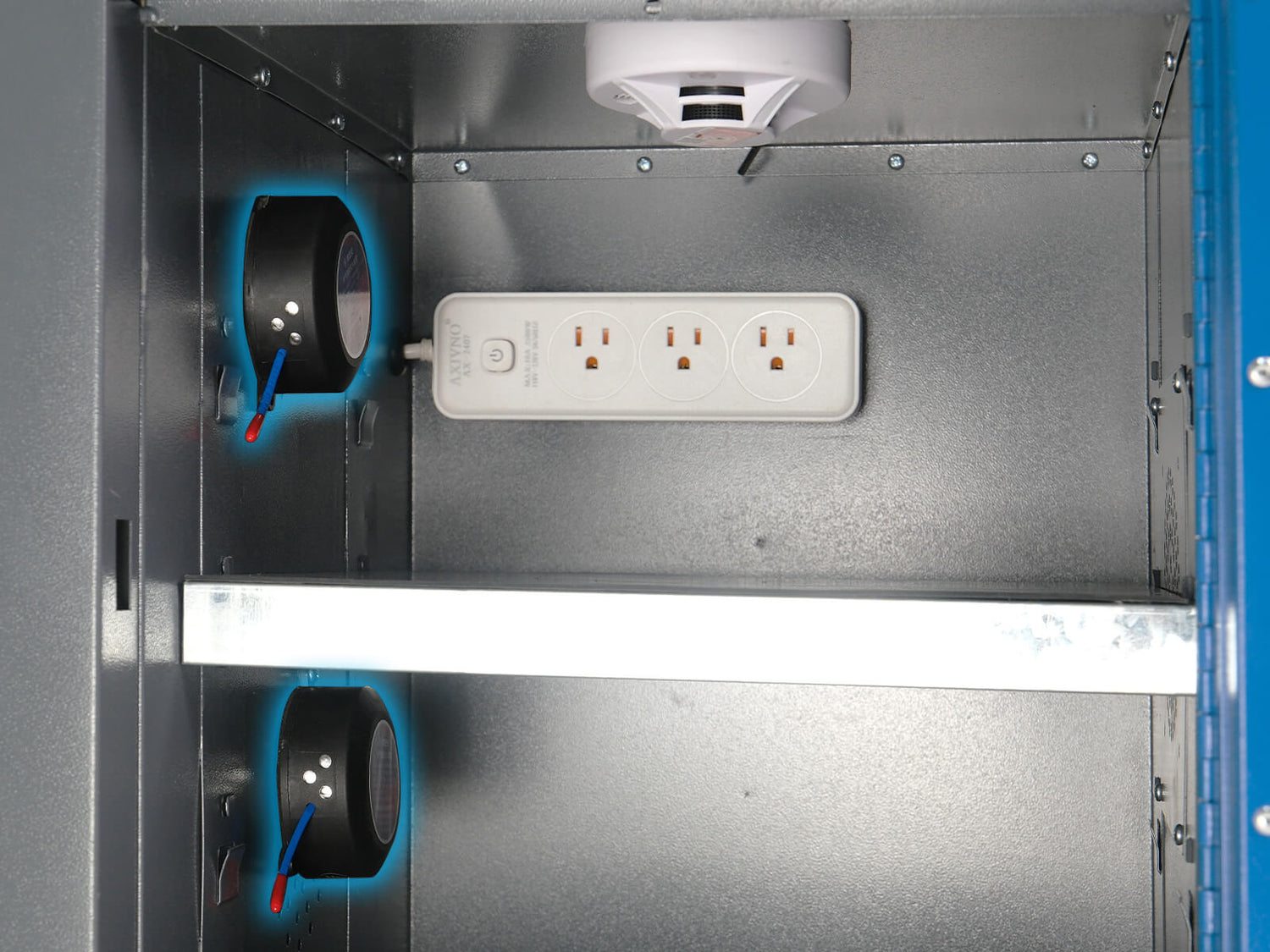

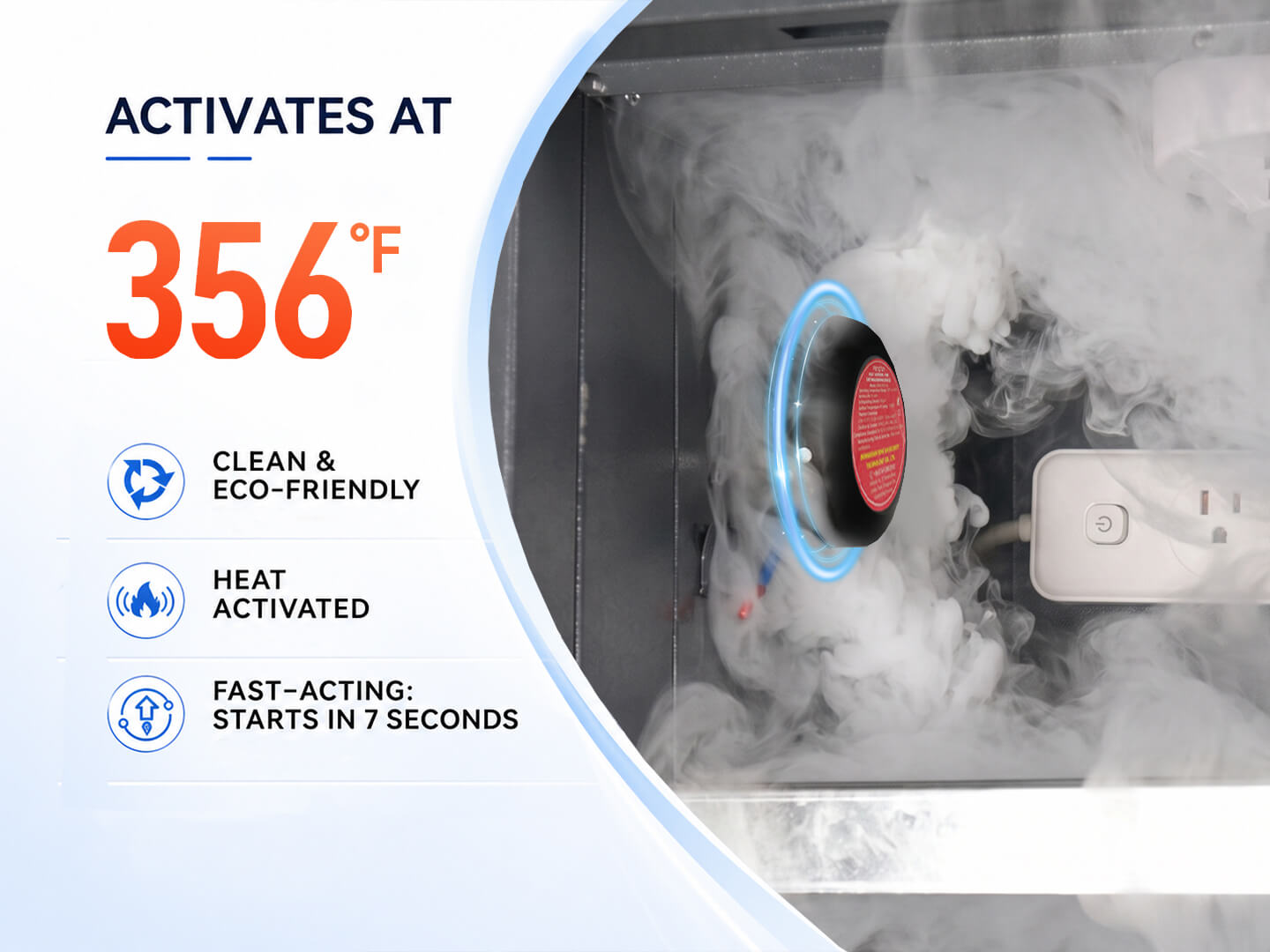

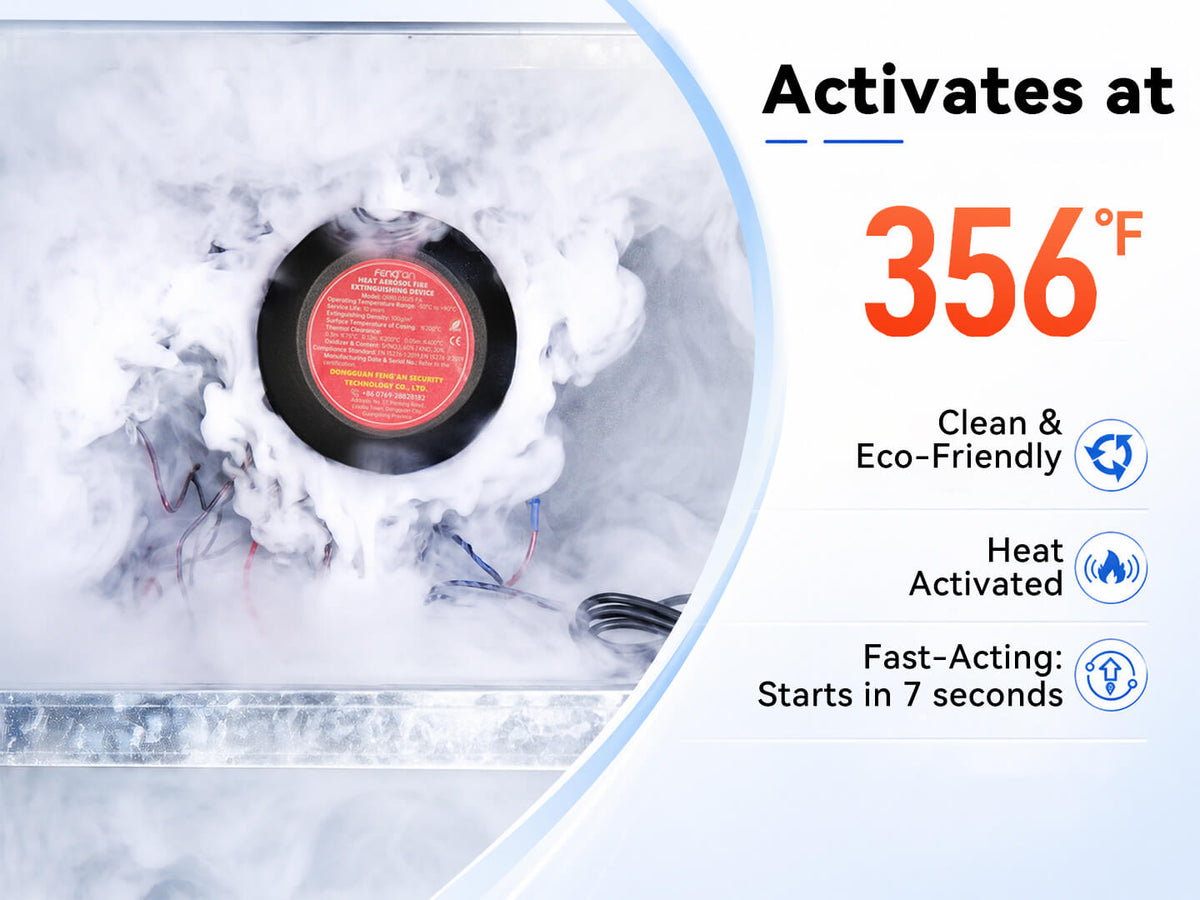

Protection even when no one is there.
The built-in heat-triggered aerosol suppression unit activates within seconds once high temperatures or flame conditions occur. It releases a non-toxic fire-suppression gas to help control battery fires fast — without the messy cleanup of traditional extinguishers.
- Activates automatically
- Helps protect your property when you’re away
Features
-

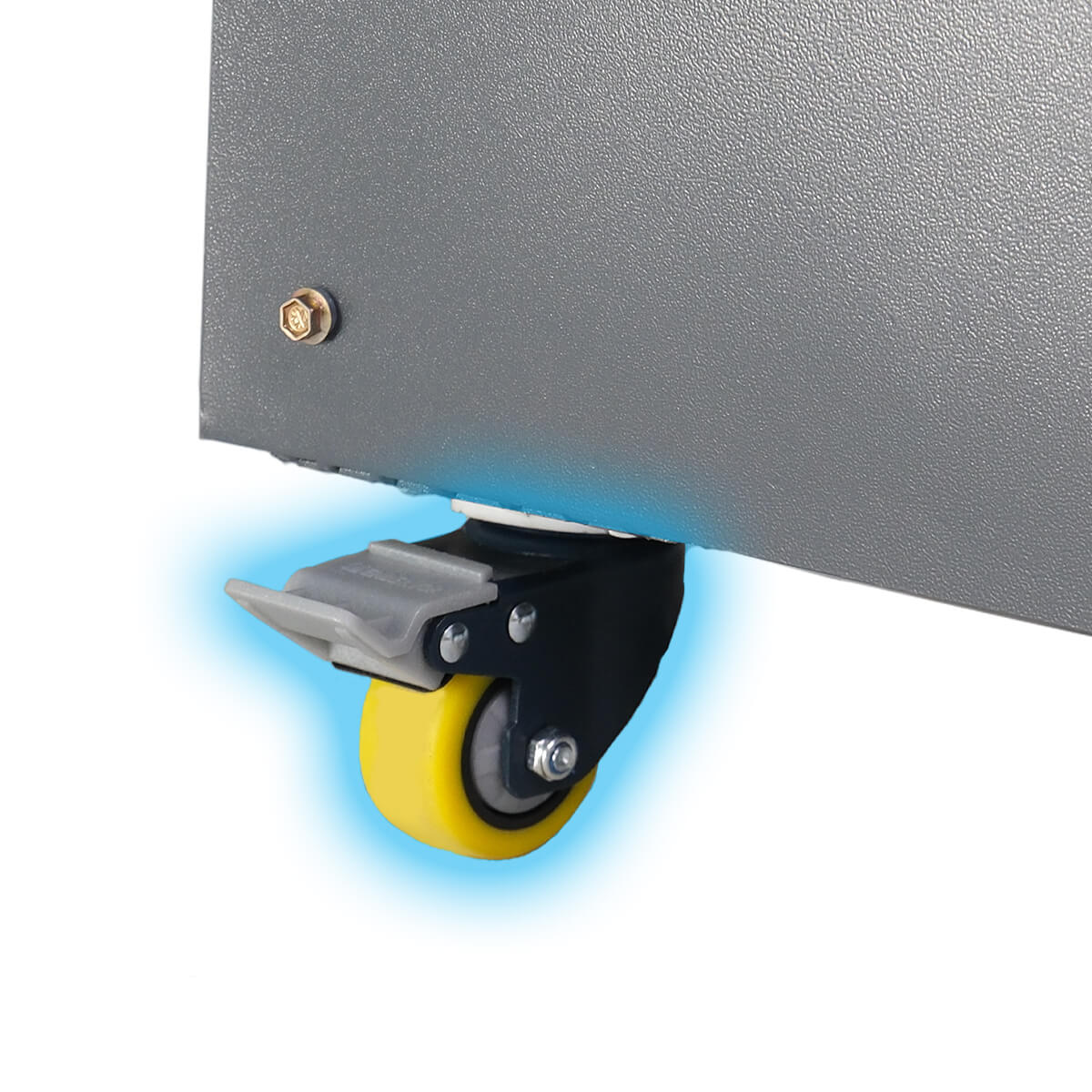

Heavy‑Duty Swivel Casters
Lockable, 360° swivel wheels make the battery safety cabinet easy to move and reposition, even in tight spaces like NYC apartments, basements, and small storage rooms.
-
Dual‑Lock Security Design
Combination of padlock and key lock keeps batteries and chargers securely stored, helping prevent unauthorized access in shared spaces and commercial environments.
-

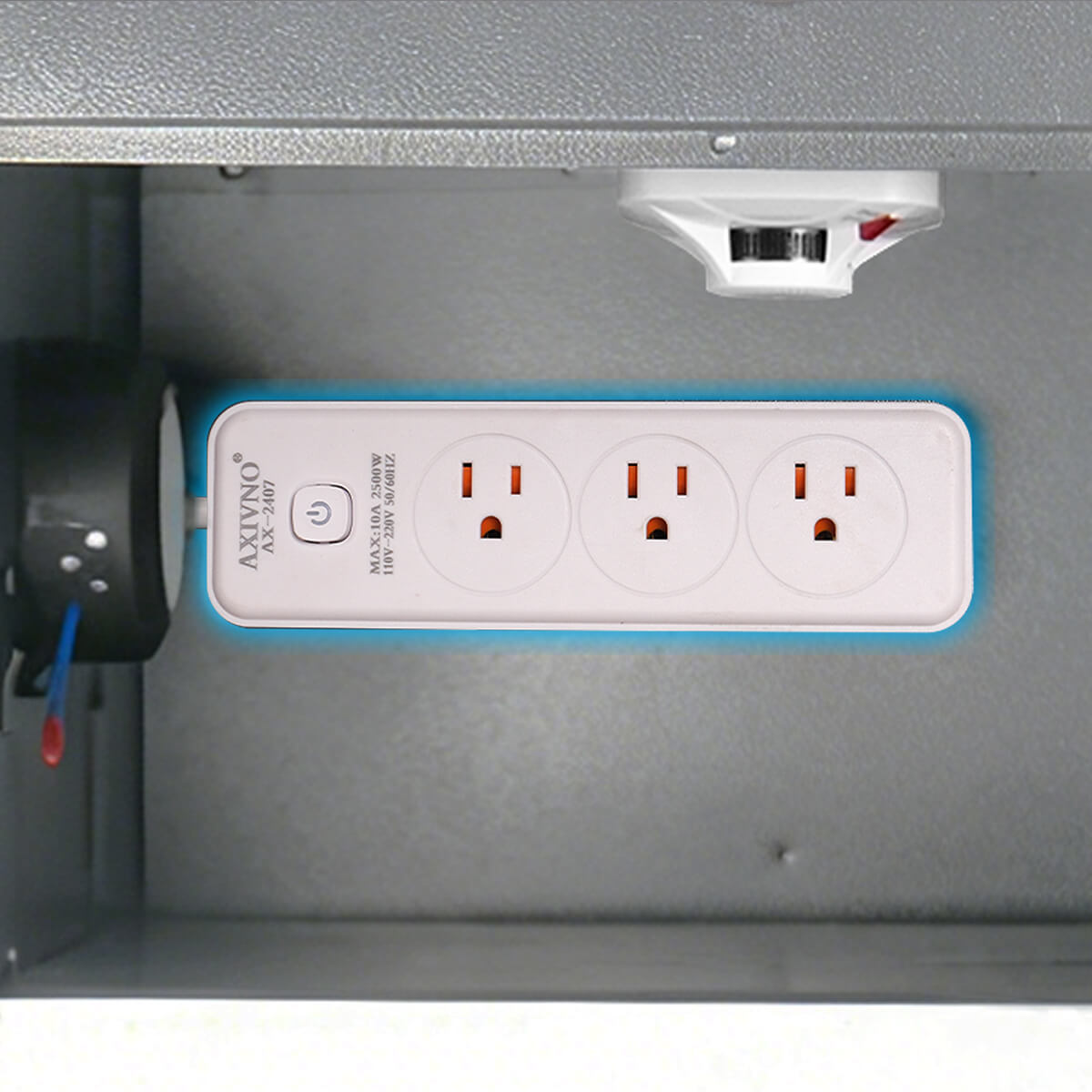

3-Outlet Power Strip
Built‑in 3 prong power strip provide over‑voltage and overload protection, high plug‑in durability, and high‑temperature resistance for safer daily charging in homes, garages, and workshops.
-

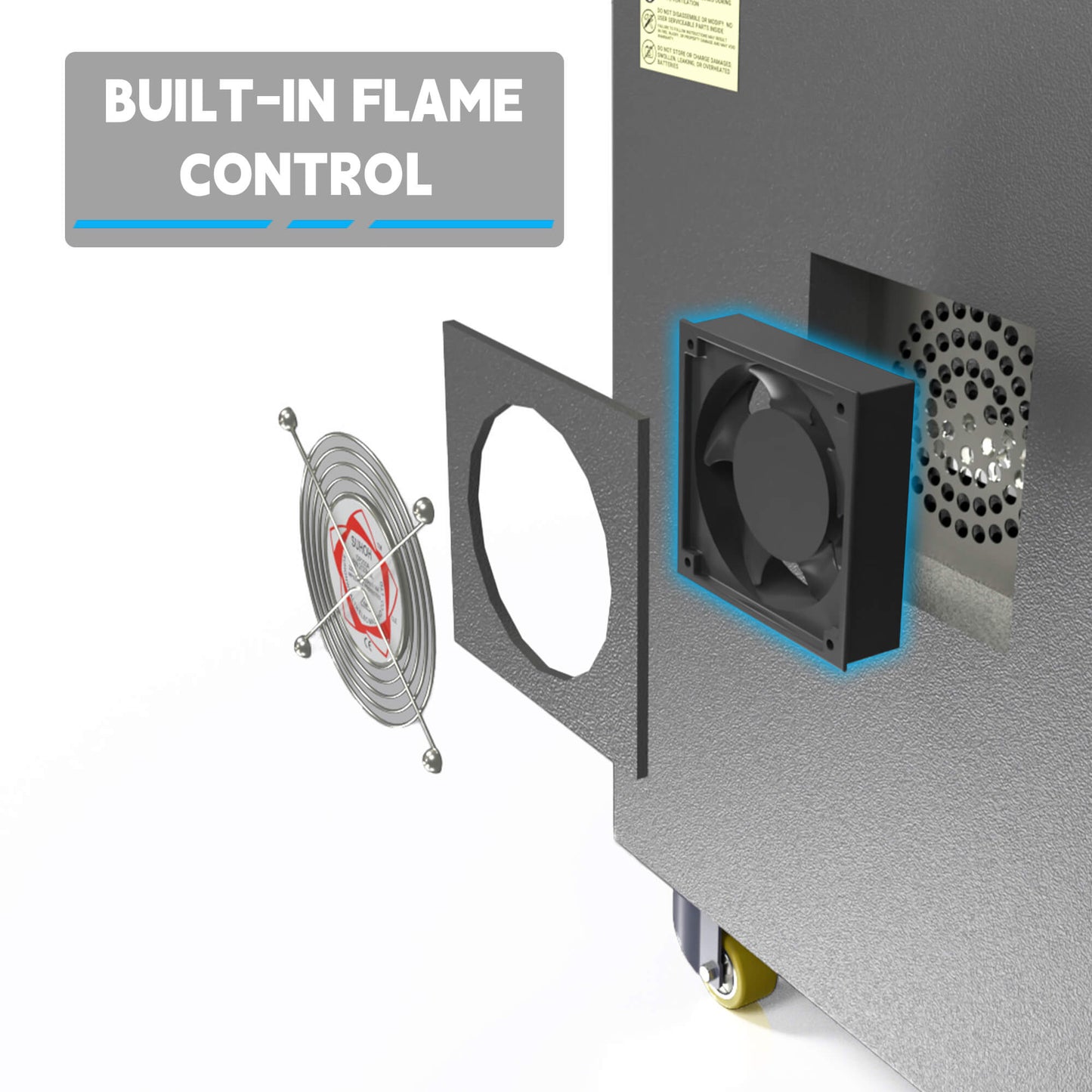

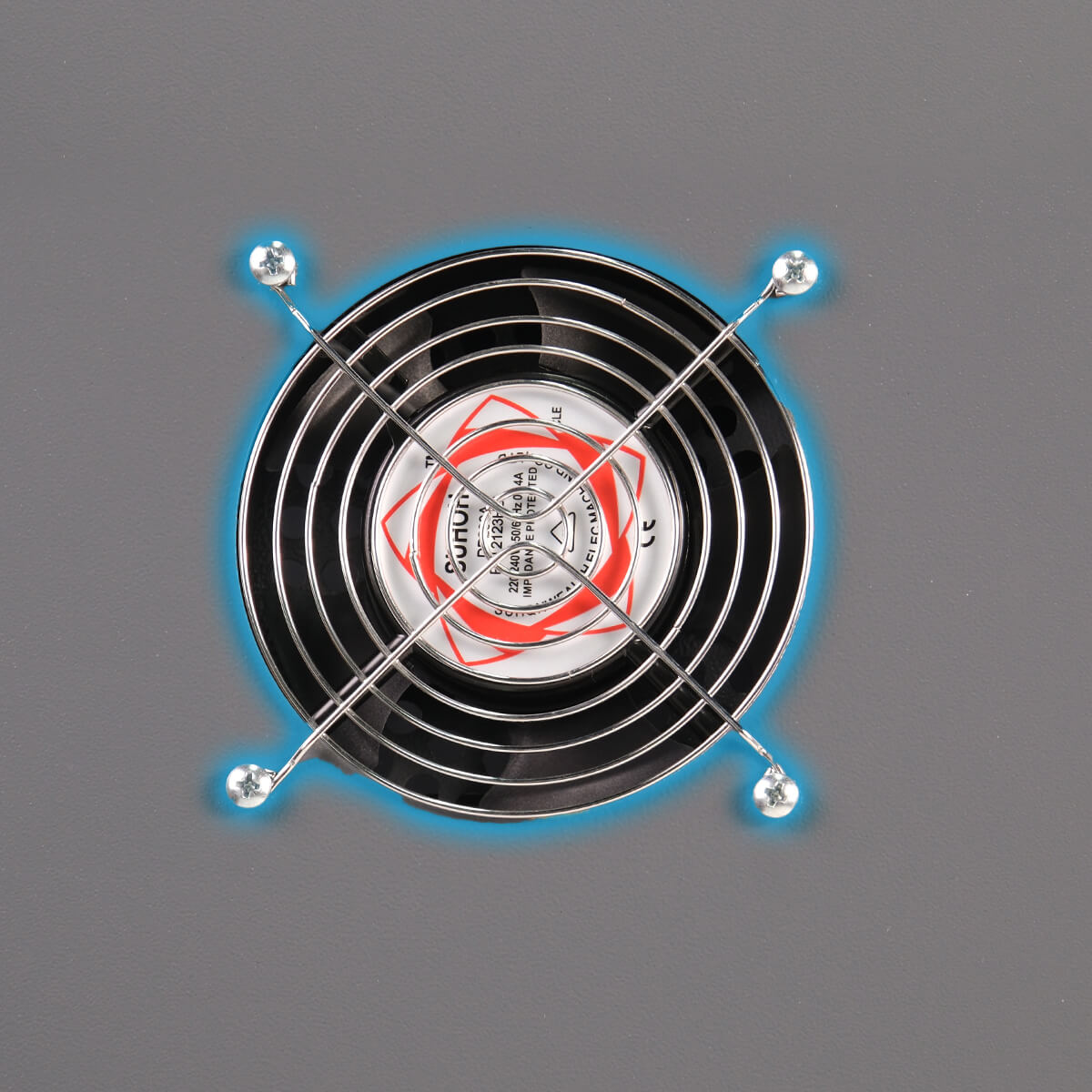

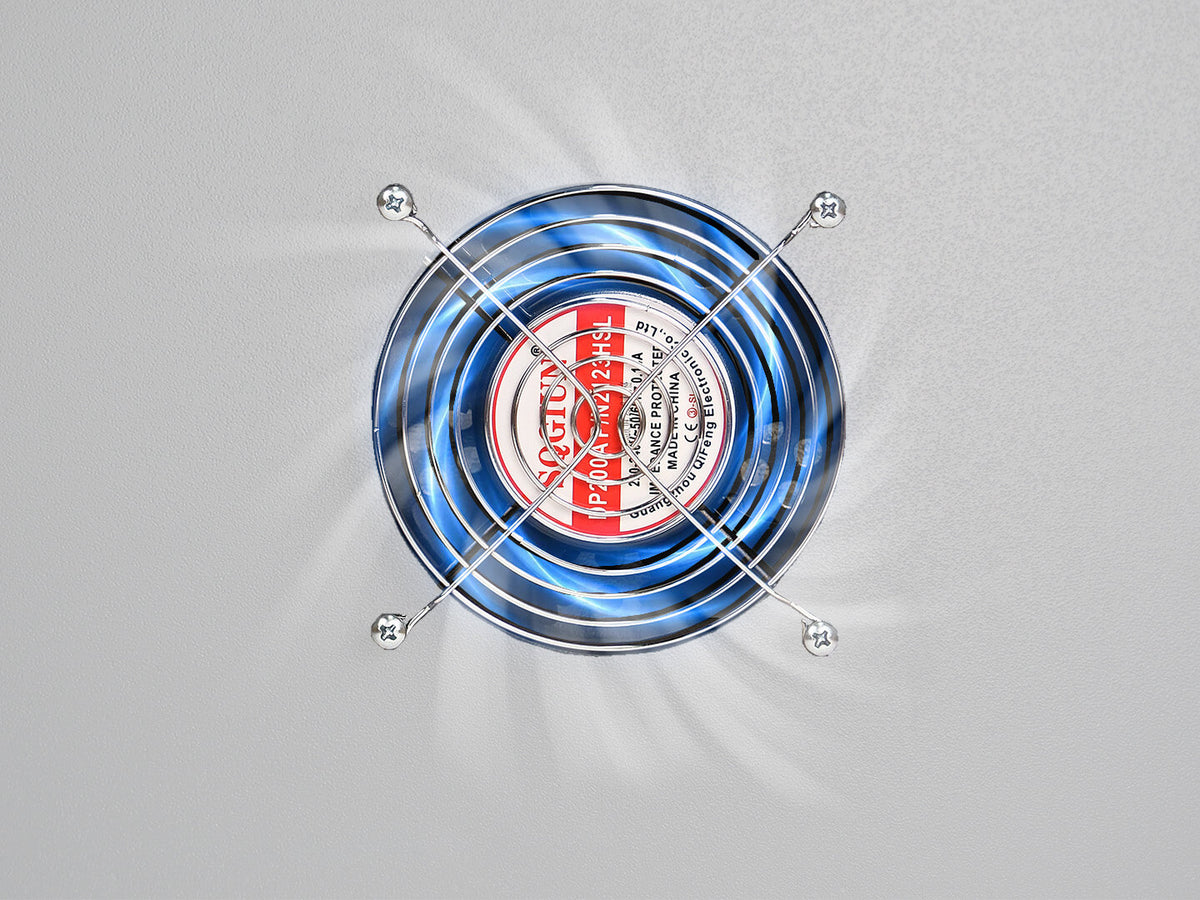

High‑Efficiency Cooling Fan
Fast heat dissipation fan keeps your e‑bike, scooter, and power tool batteries cooler during charging, helping reduce overheating risk and extend battery life.
-

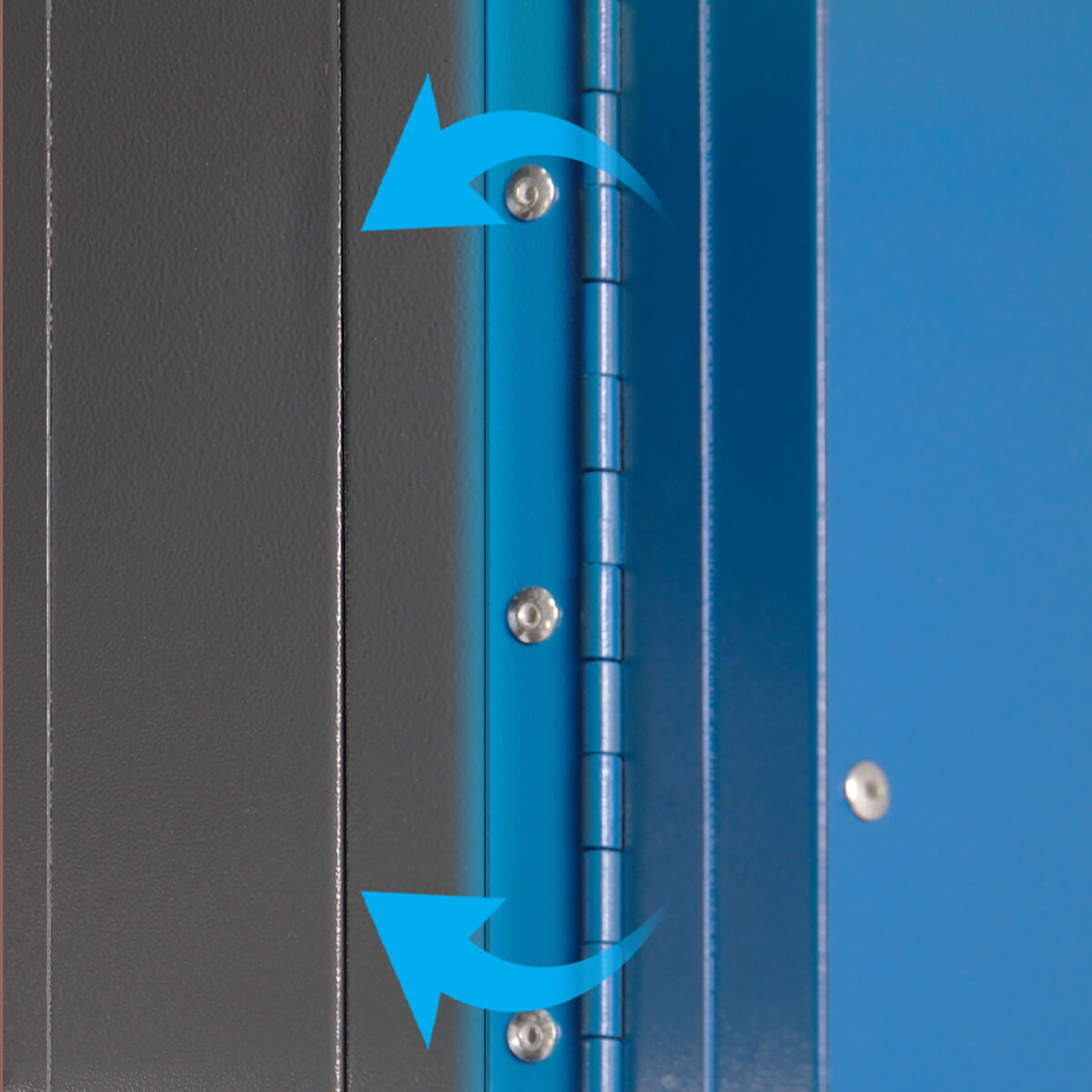

Piano‑Style Hinges
Full‑length piano hinges allow smooth 180‑degree door opening, making it easy to place, organize, and remove battery packs and chargers.

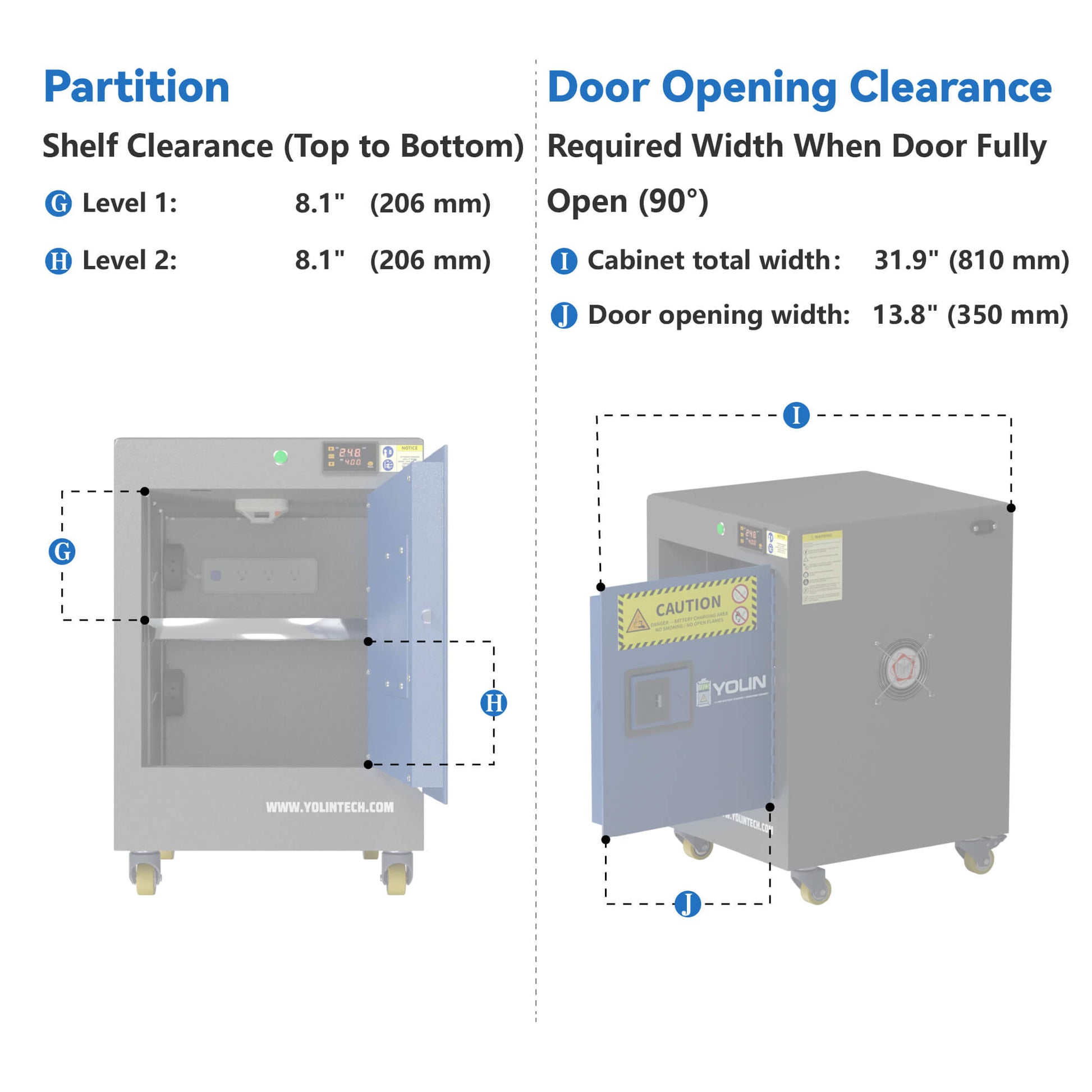

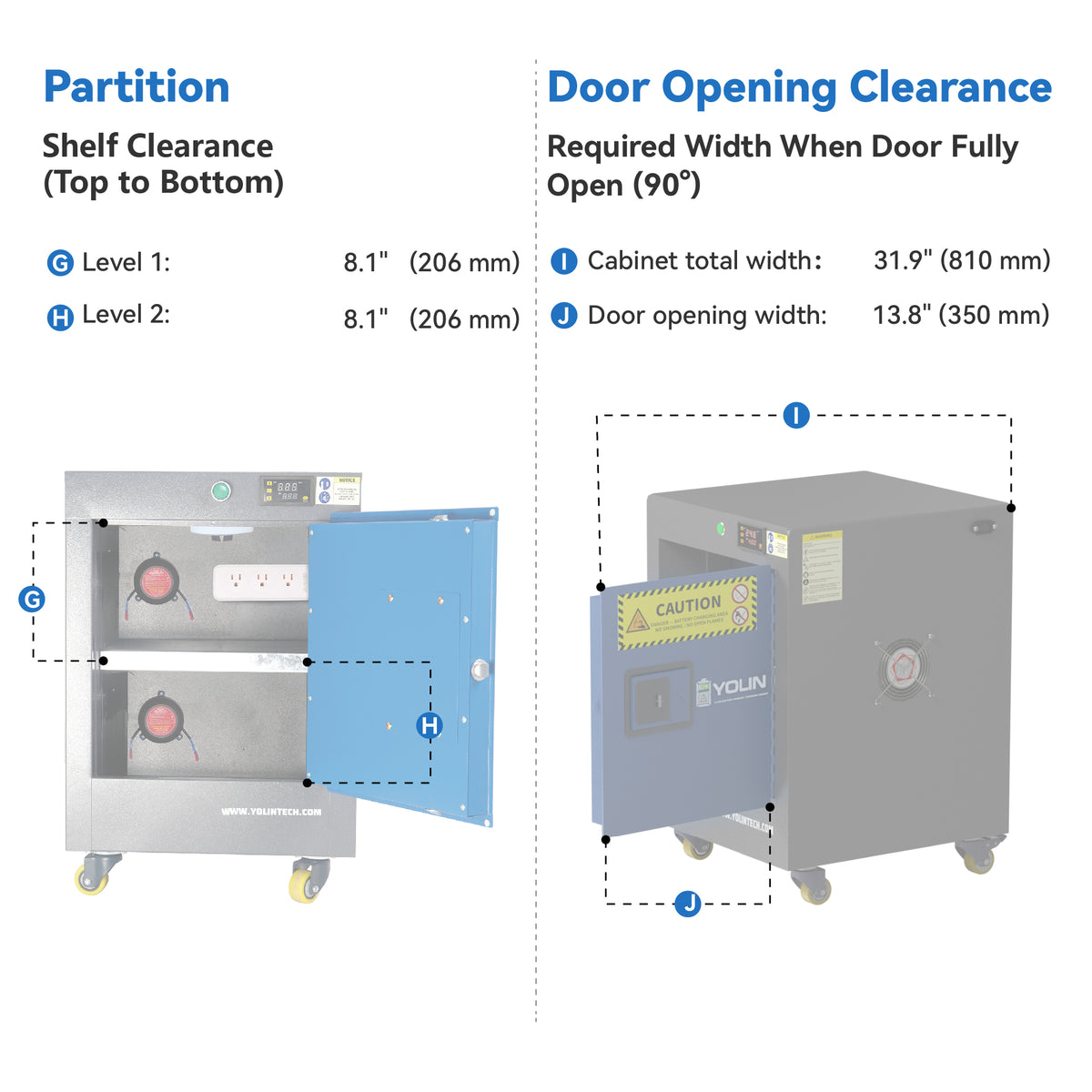

Size & Geometry
All dimensions are shown in inches (W × D × H).
Urban Model Exterior Dimensions: 18.11" W × 20.47" D × 24.41" H
Urban Model Interior Usable Dimensions: 13.78" W × 14.96" D × 14.96" H
Shipping Dimensions: 18.11" W × 20.47" D × 24.41" H
Net / Gross Weight: 46.3 lbs (21 kg) / 52.9 lbs (24 kg)
Shelf Payload: 66.13 lbs (30 kg)
Total Payload: 198.41 lbs (90 kg)
Specifications & User Manuals
Use the links below to download resources for the Yolin lithium-ion battery charging cabinets, including Urban and Workshop models.

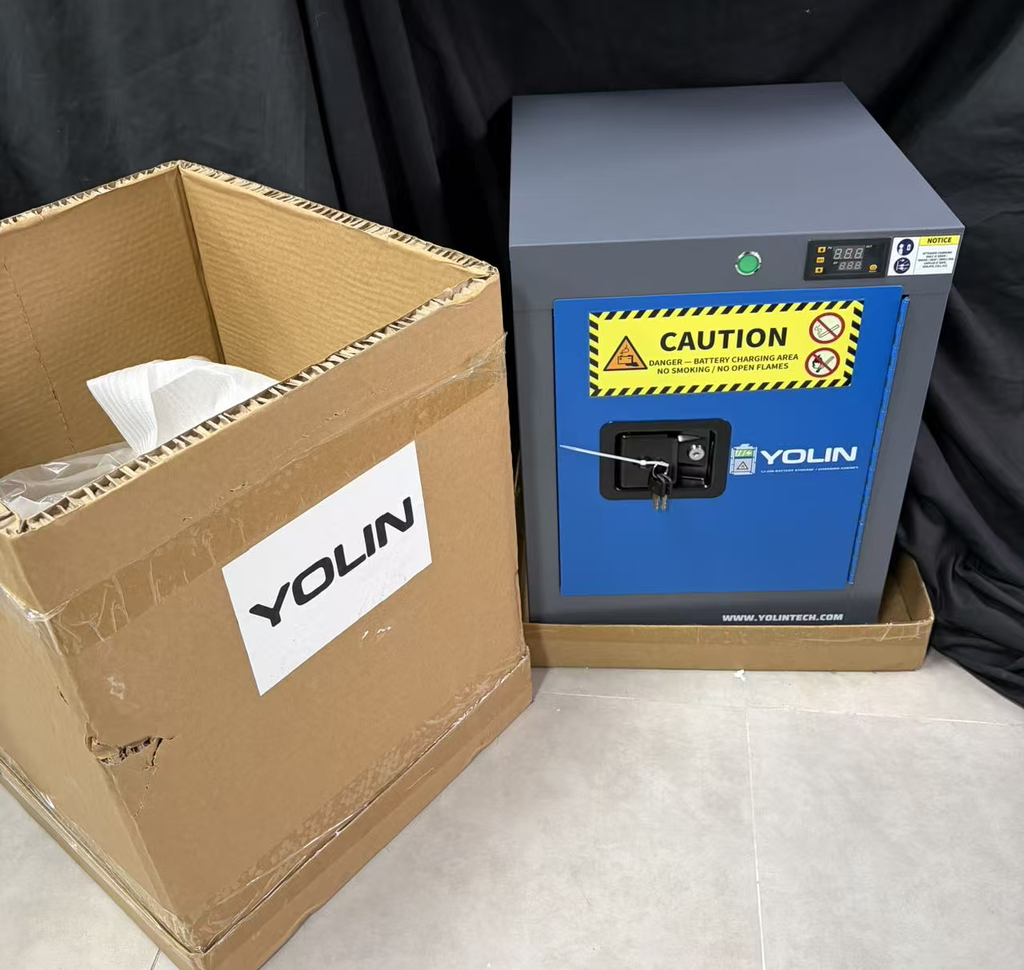

What's in the Box?
- Battery charging cabinet
- Power Cord with Integrated GFCI
- Keys
- Casters
- Smoke Alarm(Batteries Included)
- Grounding Wire

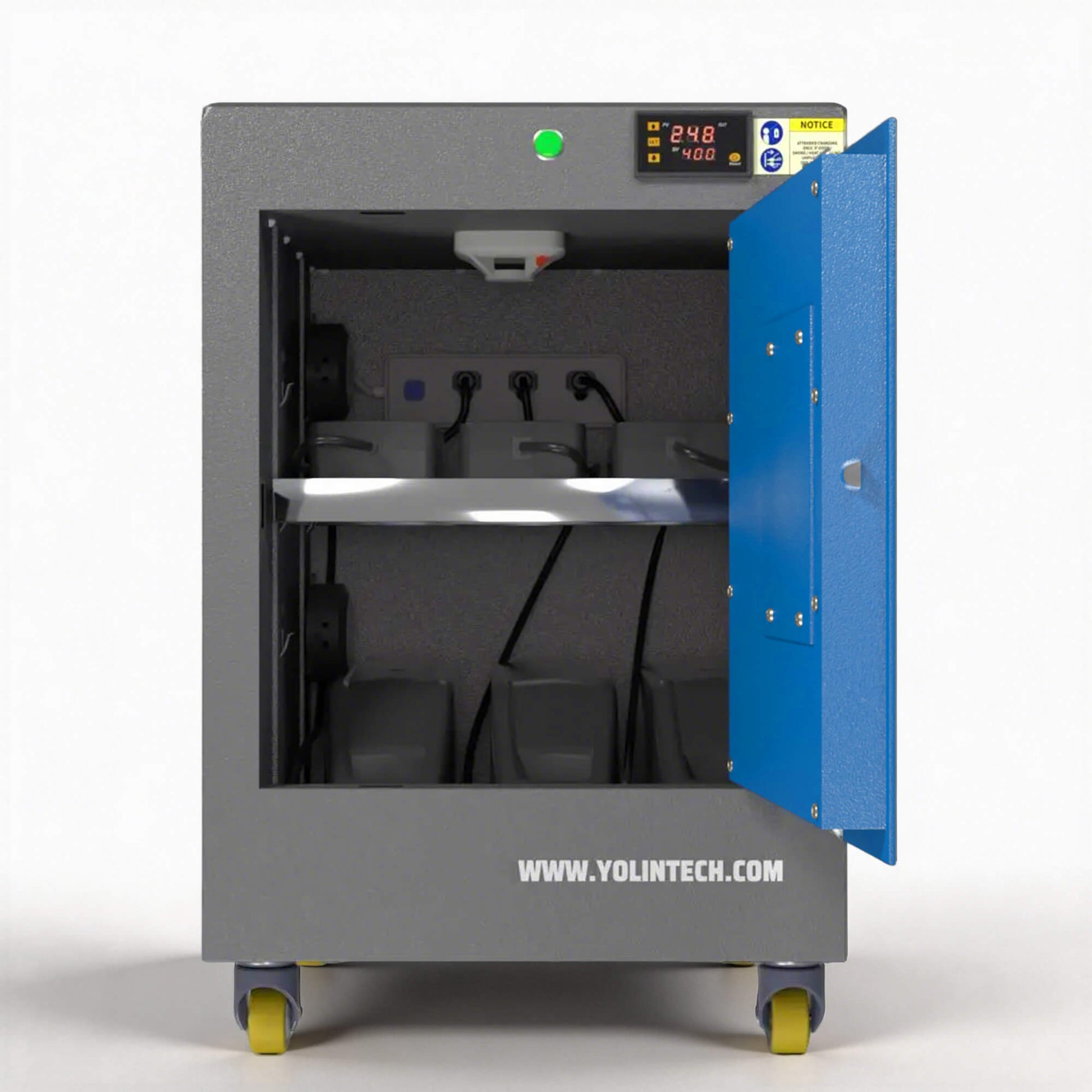

The e-bike batteries and chargers shown in the images are for illustration purposes only and are not included.
Need a Custom Configuration?
Yolin supports project-based cabinet configurations for specialized applications.
If your installation requires modified cabinet dimensions, increased simultaneous charging capacity, additional internal charging outlets, or enhanced safety integration, our engineering team can review your requirements.
Custom configurations are typically suited for fleet, workshop, or commercial installations.
Contact us to discuss your project and required battery charging capacity.
