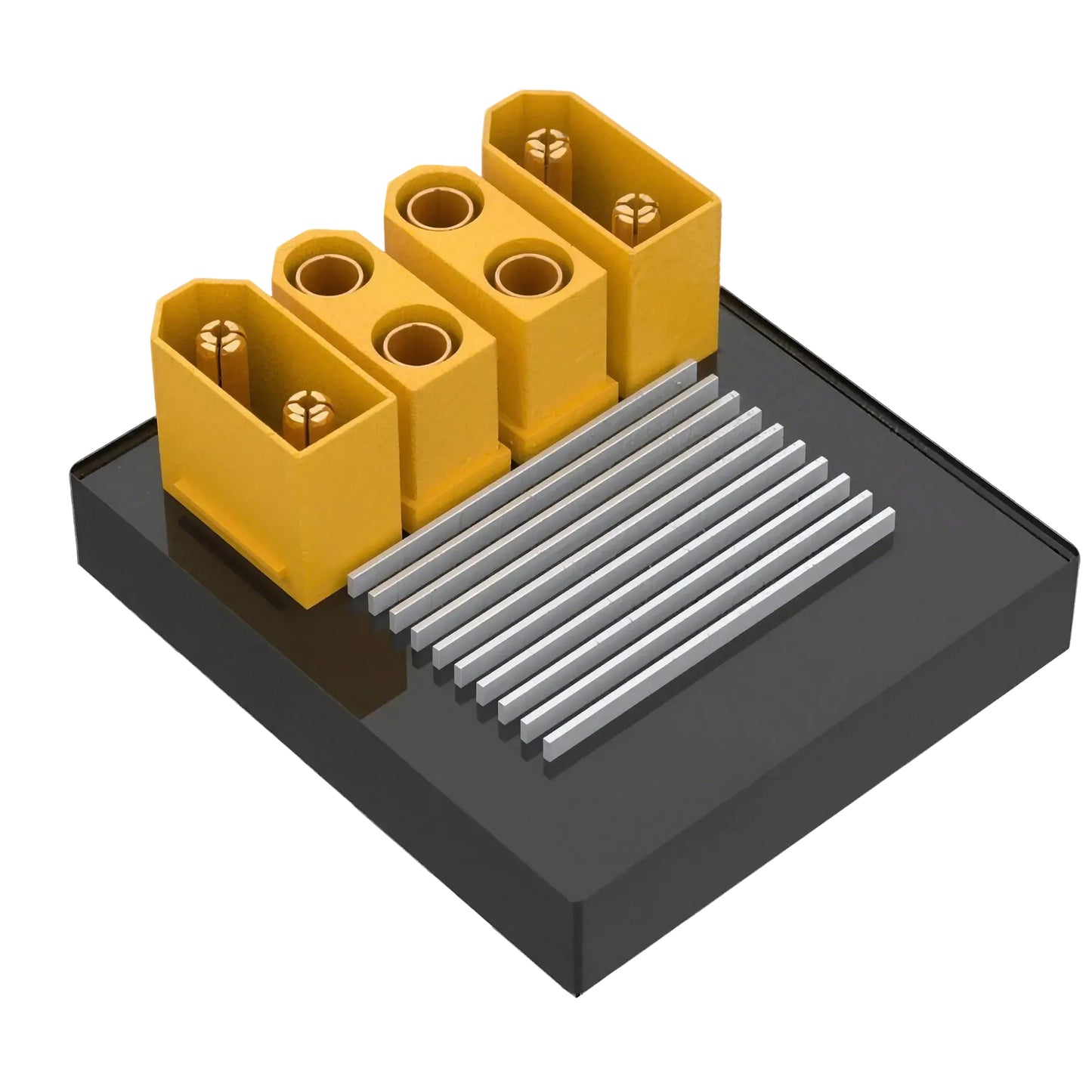

Yolin DBEU-50A Dual Battery Balancer
Yolin DBEU-50A Dual Battery Balancer
Couldn't load pickup availability
Yolin YL-DBEU-50A Dual Battery Balancer is built for higher-current e-bike systems that use two batteries to extend riding range—while keeping the packs electrically isolated (no direct parallel connection). It’s designed for cargo bikes, heavy-load riding, and power-hungry builds where stable switching and stronger connector hardware matter.
High-current DBEU platform. The DBEU series is an upgraded dual-battery management line developed by an original e-bike electronics manufacturer—engineered for real-world systems, not generic wiring kits.
Where the DBEU-50A Fits Best
The DBEU-50A is intended for systems that regularly pull higher current—such as acceleration under load, hill climbing, or cargo transport.
- Cargo e-bikes and utility builds
- Heavier riders, heavier loads, frequent starts/stops
- Higher-current controllers (verify your controller label)
- Two-battery setups where stable power delivery matters
What a Dual Battery Manager Does
- Manages usage between two compatible batteries to extend total riding range
- Supports controlled switching and load distribution between packs
- Helps prevent one battery from draining excessively
- Maintains more stable operation for demanding use cases
What It Does Not Do
- Does not increase motor power output
- Does not increase top speed or remove speed limits
- Does not combine two packs into one large battery
- Does not make mismatched batteries safe to use together
DBEU-50A Key Difference: 50A + XT90
Compared with lower-current dual-battery devices, the DBEU-50A is built to support higher current demand and uses XT90 connectors for higher-load applications.
- Max Current: 50A
- Connector: XT90
- Designed for: higher-current e-bike platforms
- Physical size: larger housing vs. lower-current versions (to support higher-load components)
Important Compatibility Checklist
Before purchasing, confirm:
- Both batteries have the same nominal voltage (system range: 20–55V)
- Battery chemistry matches (do not mix different chemistries)
- Connector type is XT90 (or use correct, high-current-rated adapters)
- Your controller supports dual-battery input / two-battery configuration
- Do not use with damaged, swollen, or unknown-condition packs
Safety note: This product manages battery usage. It does not modify controller behavior or performance limits set by the bike manufacturer.
Technical Specifications
| Model | YL-DBEU-50A |
|---|---|
| Input Voltage | 20–55V |
| Static Current | 3mA |
| Max Current | 50A |
| Connector Type | XT90 |
| System Type | Dual battery e-bike management (non-parallel switching) |
| Recommended Use | Cargo / high-current / heavy-load e-bike systems |
Installation Notes (High-Current Systems)
- Power the bike off completely and disconnect batteries before wiring.
- Confirm XT90 polarity and connector condition before seating.
- Route cables away from sharp edges, moving parts, and pinch points.
- For high-power builds, professional installation is recommended.
Need Help Confirming Fit?
To reduce wrong orders, contact us before purchase with:
- Your battery voltage (example: 48V / 52V)
- Photos of your XT90 connectors (battery side + controller side)
- Controller label (current rating) and bike brand/model (if known)
We’ll help confirm whether the DBEU-50A is the right choice for your system.
