Yolin YL-81F-H Ebike Display
Yolin YL-81F-H Ebike Display
Couldn't load pickup availability
Compatibility
Compatibility
Simply flip over your original display. If it says "Yolin" on the back, it's an original Yolin product. Since we made it, your specific display data is already in our system.
Most compatibility issues arise because sellers offer generic "universal" displays that fail to communicate with your specific e-bike controller.
Why Buy from Yolin?
Why Buy from Yolin?
- Original Yolin Display Manufacturer
- Direct firmware-level compatibility
- Access to protocol database
- Technical support for configuration

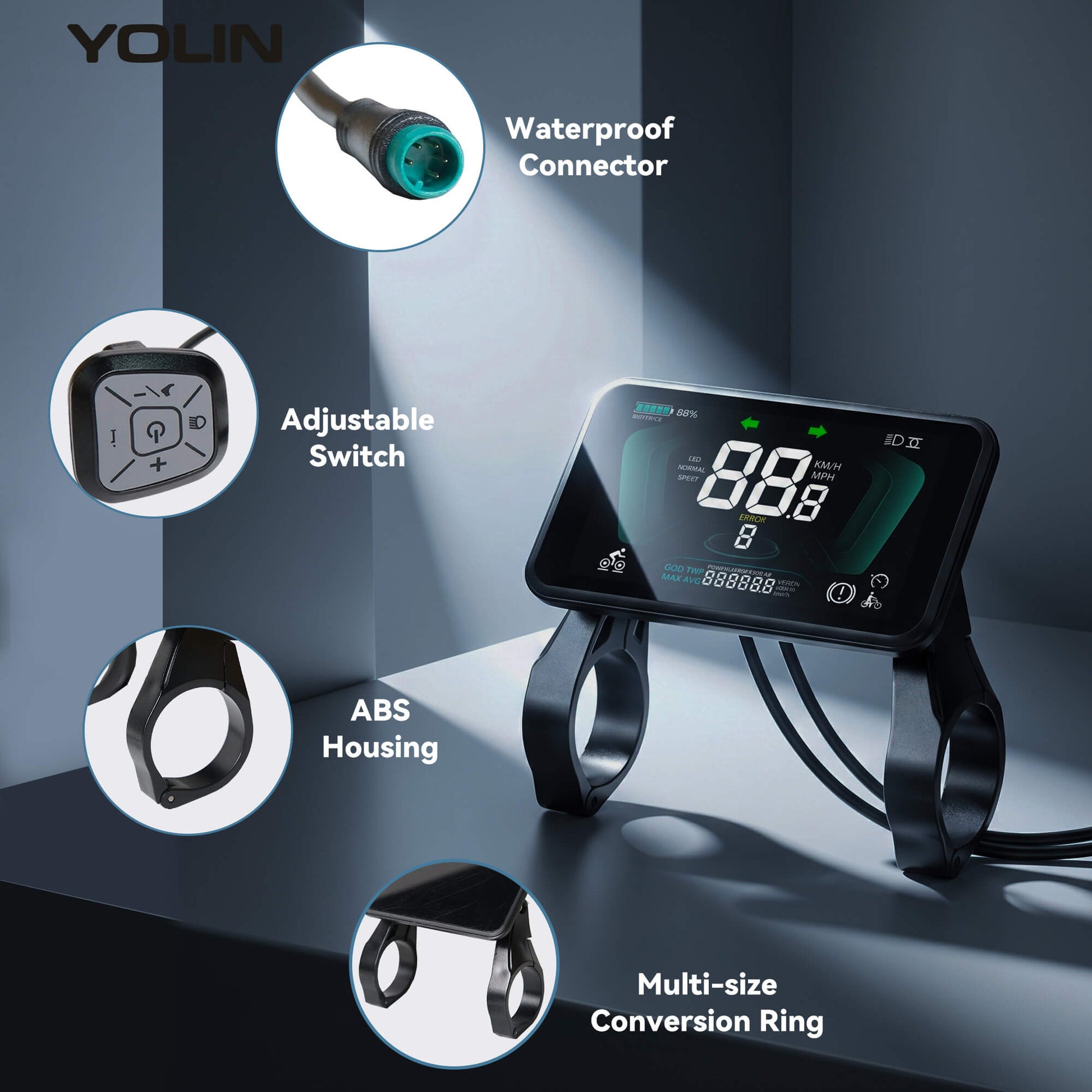

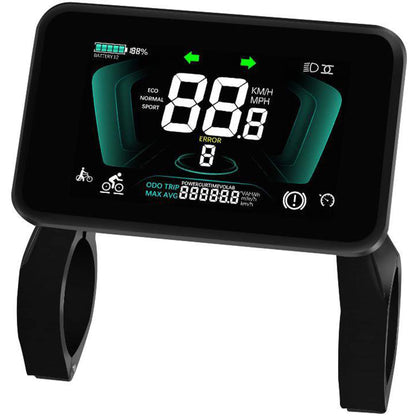

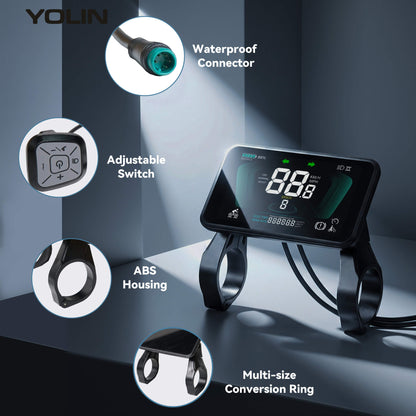

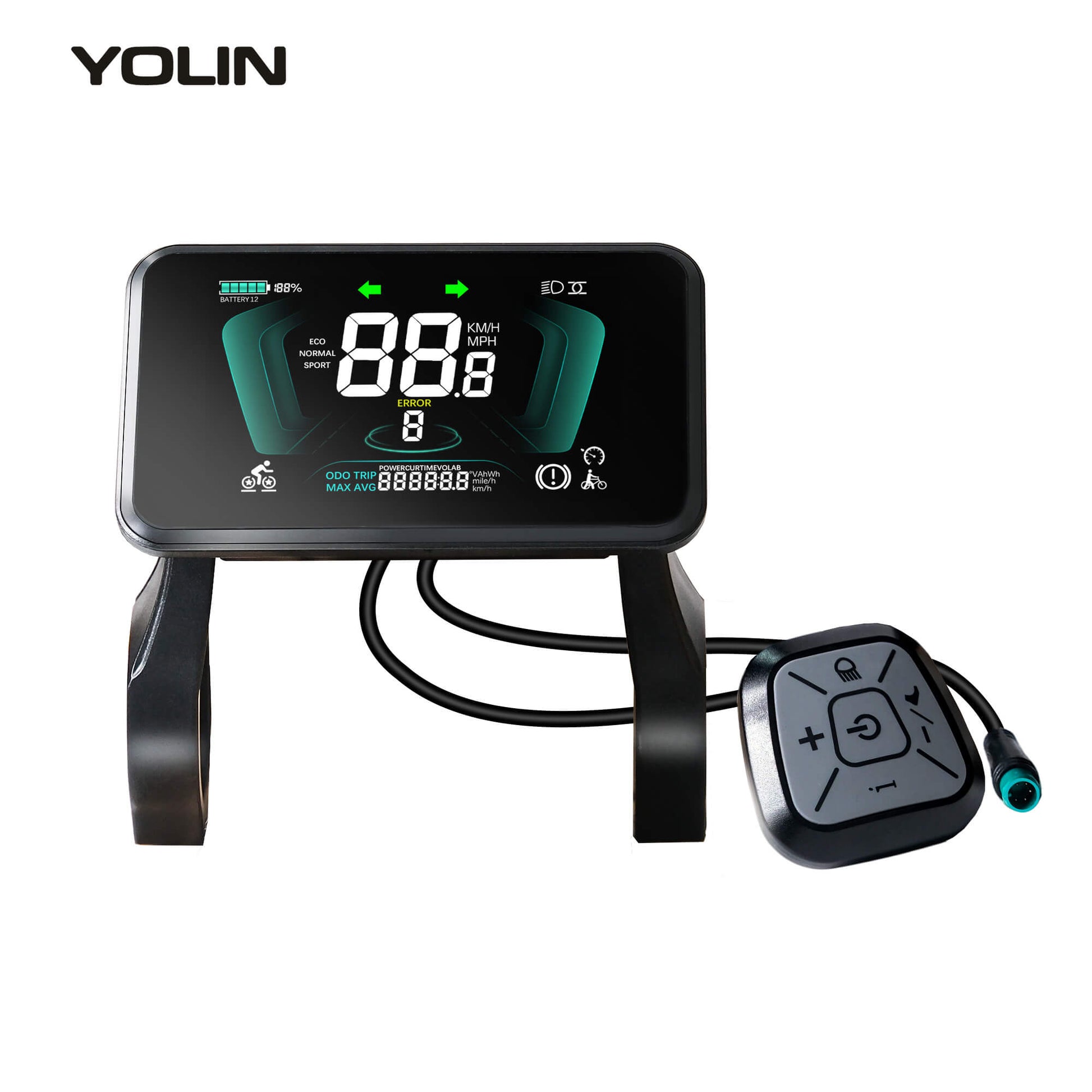

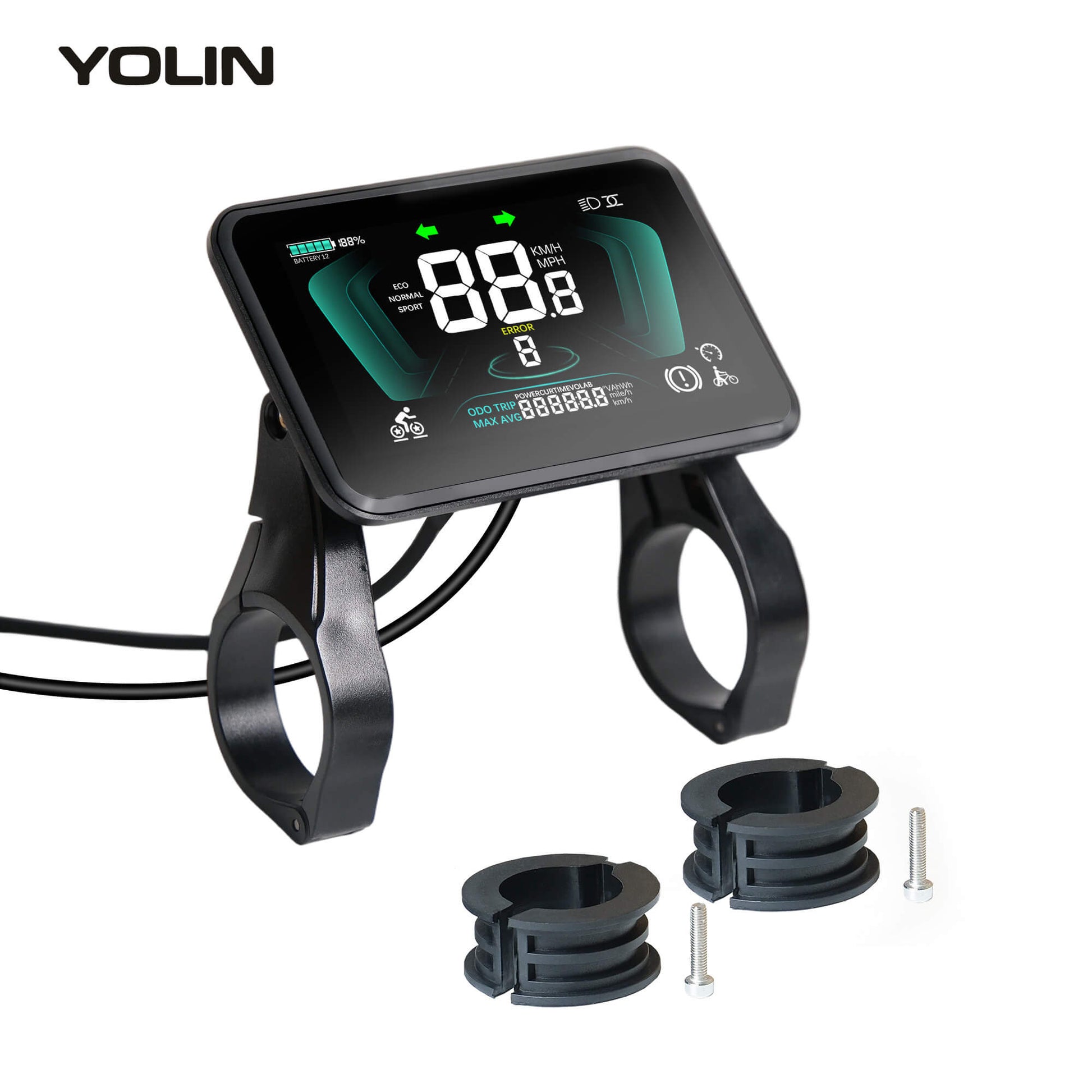

The Yolin YL-81F-H features a landscape screen layout with optional advanced system indicators for dual-drive and dual-battery configurations.
Horizontal Layout for Integrated Cockpit Design
Unlike vertical-format displays such as the YL-80C, YL-81F, and YL-91F, the YL-81F-H uses a horizontal screen structure that aligns naturally with wider handlebar layouts and modern integrated dashboards.
- Landscape real-time speed display (mph/kmh system dependent)
- Multi-level PAS indication
- Battery level and voltage monitoring
- Integrated system error diagnostics
- Clear horizontal information segmentation
- Bluetooth & App connectivity (depends on system configuration)
Optional Advanced System Indicators
The YL-81F-H supports configurable features depending on system setup:
- Dual motor (dual-drive) indicator
- Dual battery status indication
- Turn signal display integration
- NFC card-based power activation
Optional features such as dual battery or NFC activation require compatible controller support.
The connector shown in the product images is the standard version. We offer various wiring harness options to ensure compatibility with your specific eBike model and electrical system. If you require a different connector, please contact our customer service team after placing your order.
Technical Specifications
| Model | Yolin YL-81F-H |
|---|---|
| Screen Orientation | Horizontal (Landscape) |
| Communication Type | UART / CAN |
| Operating Voltage | 36V / 48V / 52V |
| Protocol Compatibility | Standard P1/P2 / 5S / LKLS / Custom |
| Connector Type | 5-pin waterproof round / SM / Custom |
| Mount Compatibility | 22.2 mm / 25.4 mm / 31.8 mm |

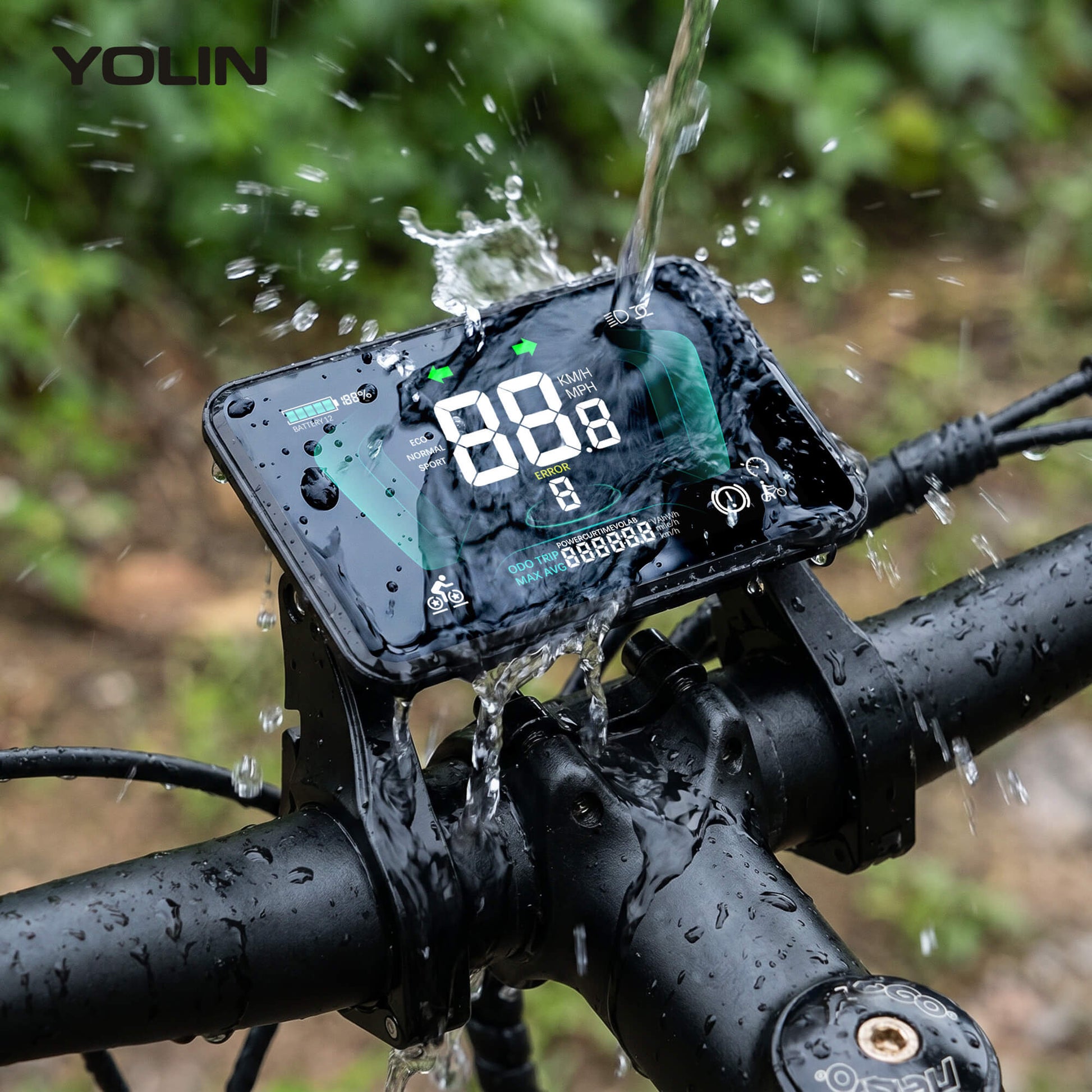

| Water Resistance | IP66 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
Share
Need Help with Error Codes?
If you are replacing a display due to an error code, review:
- Yolin Display Error Code Guide
- Error 30 (Communication Error) Explained
- Error 30 Troubleshooting Flow
- Yolin Display Password Recovery Guide
FAQS
How do I know if this display will work with my e-bike?
The easiest way to check is to look at your original display. If you see "Yolin" on the back, that means it's our product. As the original manufacturer, we already have your display's information in our database.
If you no longer have the old display, just send us your e-bike model or controller model, and we’ll check compatibility for you.
Is this plug and play?
Yes, it is Plug and Play. We handle all the technical programming here so you don't have to. There is no need to connect to a computer or change any settings. Just install the display, plug in the connectors, and you are good to go!
What if the display isn't compatible with my bike? Can I return it?
If the correct original display code is provided and the display is defective or fails to work due to a manufacturing fault on our end, a full refund will be issued.
Exclusions:
External Damage: Error codes caused by damaged or malfunctioning e-bike components (e.g., motor, controller, wiring) are not display defects. The display is functioning as intended by alerting the user to external issues, and these cases do not qualify for a refund.
Custom Products: Each display is custom-programmed exclusively for your serial number and cannot be used on other bikes. Because these are 1-on-1 personalized products that cannot be resold, we cannot accept returns due to "change of mind," incorrect codes provided by the customer, or errors caused by other damaged bike parts.
Can I change the speed limit or settings (P-parameters) myself?
Yes, while it comes ready to use, our displays allow you to access basic settings (like wheel size, speed limits, or pass-voltage) directly through the menu. We can provide a manual if needed.
Can I choose a specific connector type?
Absolutely! We carry every type of connector. Usually, we send the one that fits your bike's original setup automatically. But if you need a different one, just send us a message before shipping, and we’ll change it for you right away.
