Yolin

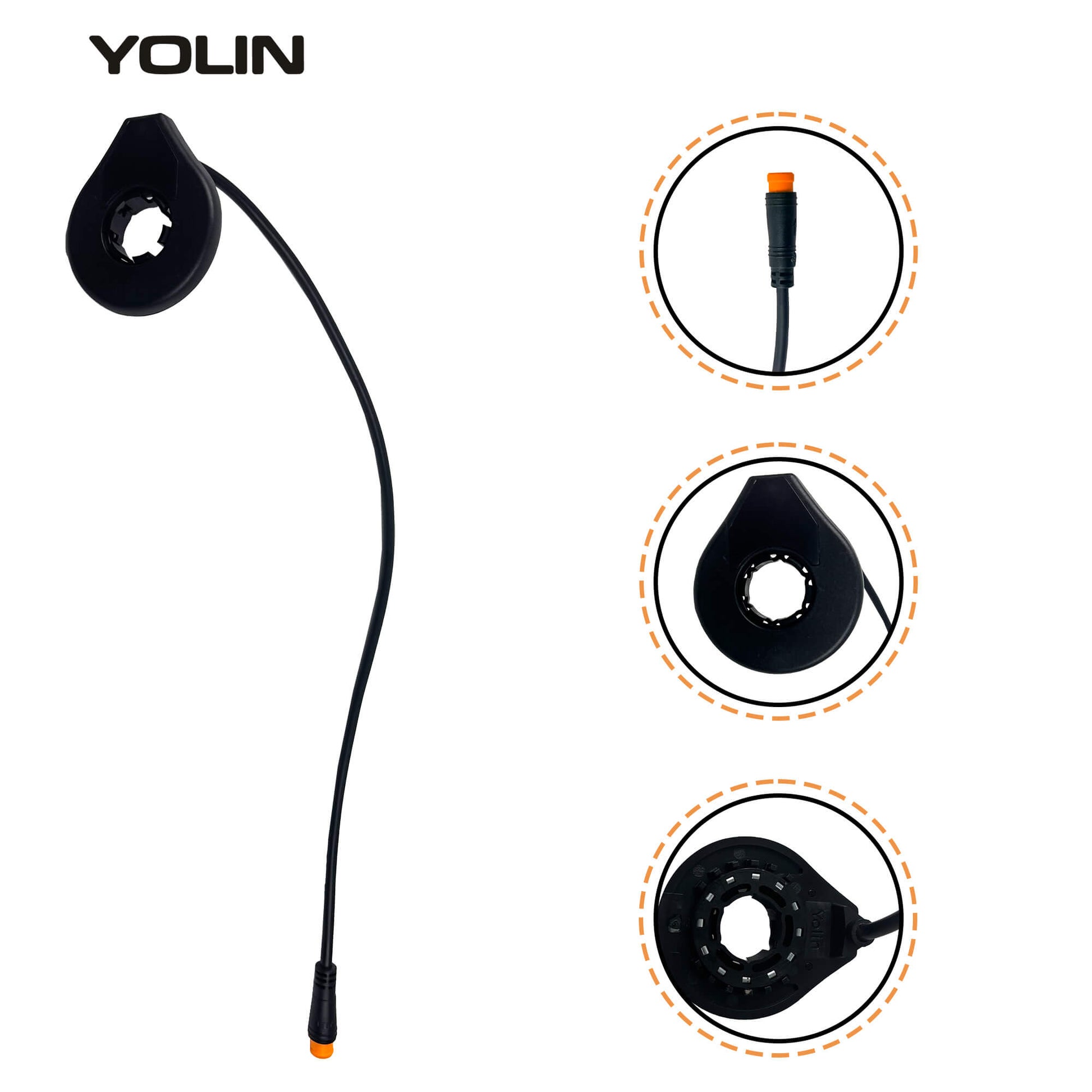

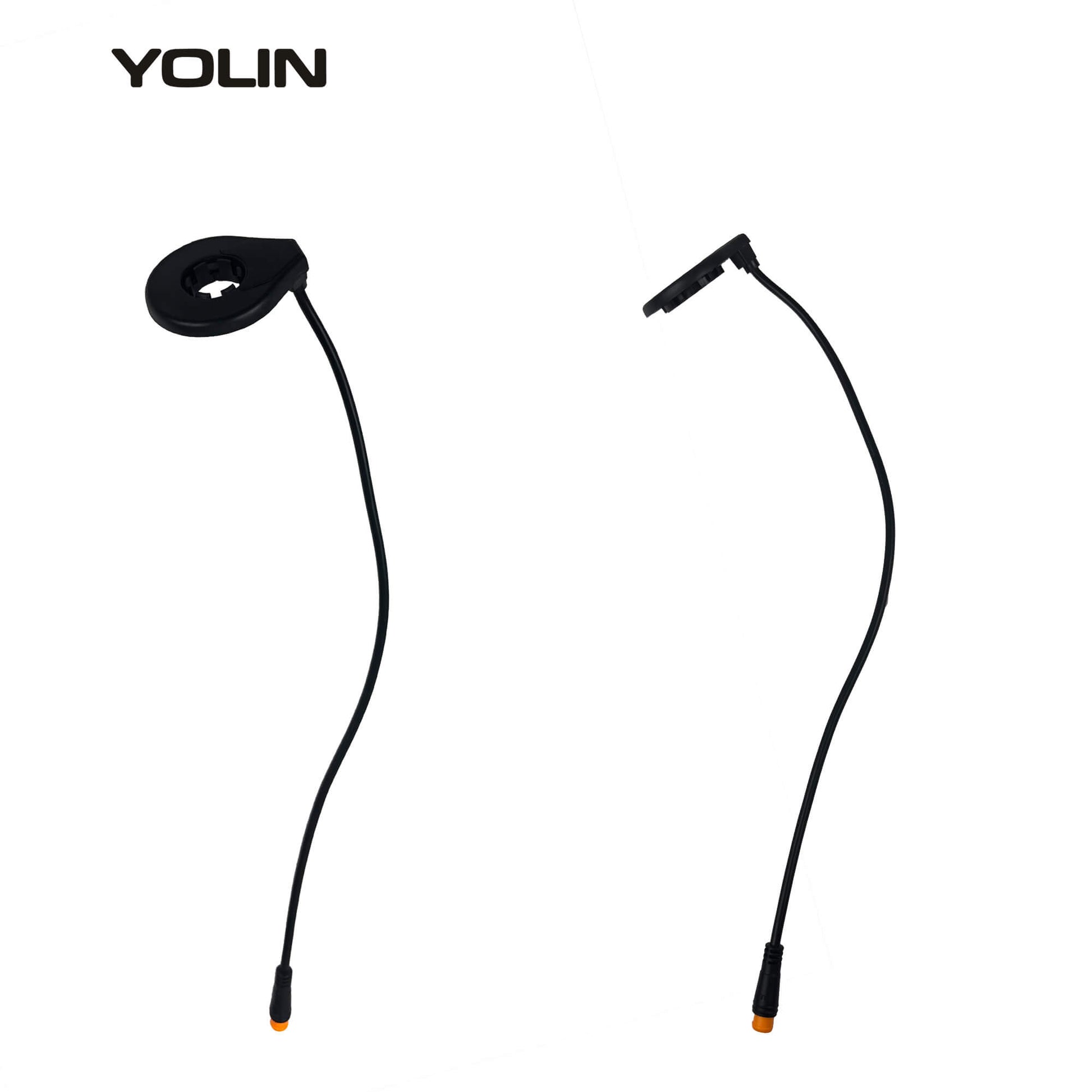

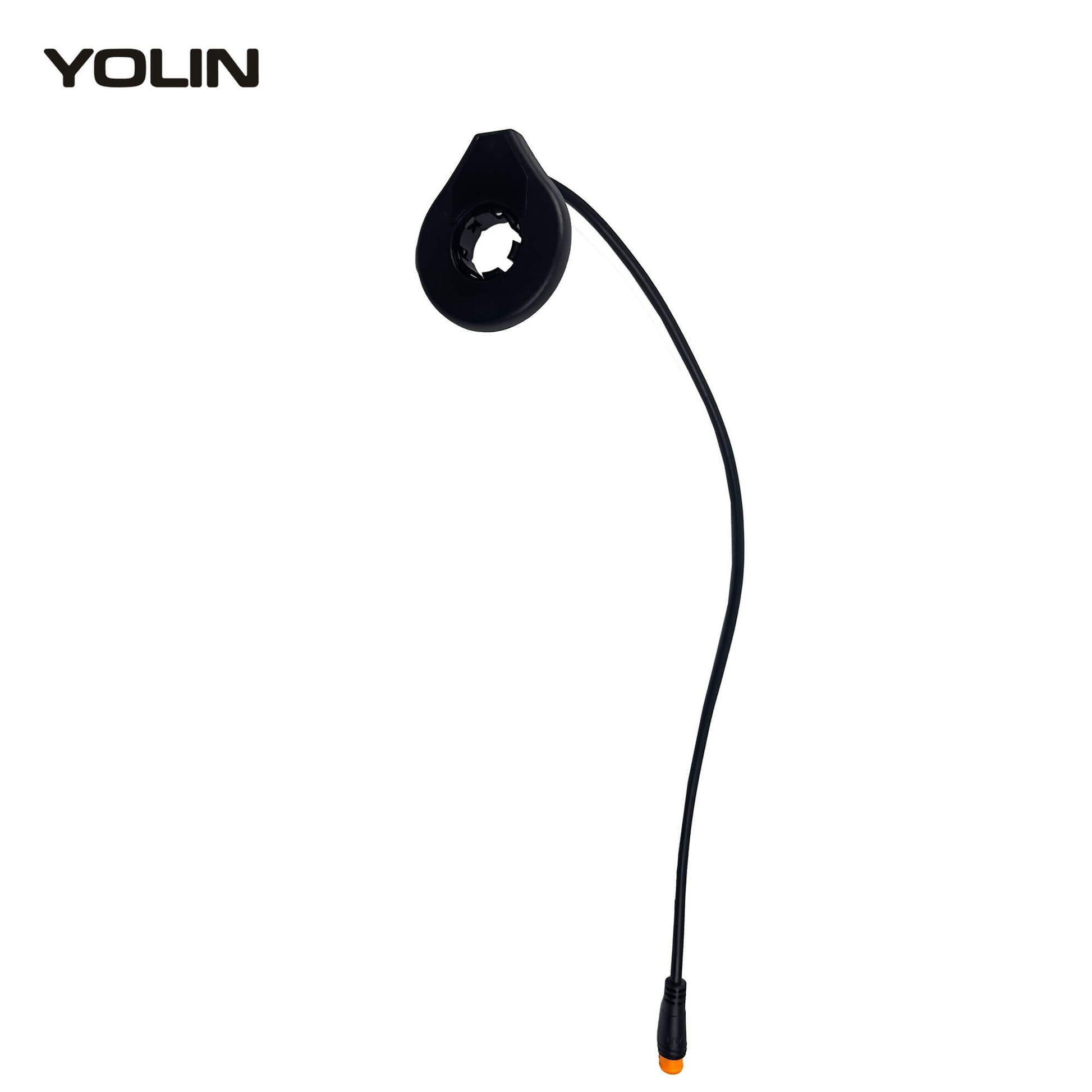

Yolin SM-07 Cadence Sensor
Yolin SM-07 Cadence Sensor
No reviews
Precio habitual
$30.00 USD
Precio habitual
Precio de oferta
$30.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Yolin SM-07 Cadence Sensor is an integrated pedal assist sensor designed for e-bike systems that require stable cadence detection and a streamlined installation format.
With support for 12 and 24 pulse signals, the SM-07 is suited to e-bike systems where quick pedal response and clean sensor integration are important.
Why Choose SM-07
- Integrated structure for simplified installation
- Supports 12 / 24 pulse output
- Designed for stable and responsive pedal assist detection
- Suitable for commuter, cargo, and utility e-bike systems
Typical Applications
- Commuter e-bikes
- Cargo and utility e-bikes
- OEM production builds
- Modern PAS systems requiring consistent cadence input
Technical Specifications
| Model | SM-07 |
|---|---|
| Sensor Type | Cadence Sensor (PAS) |
| Voltage | 5V |
| Structure | Integrated Design |
| Installation Direction | Left / Right |
| Pulse Options | 12 / 24 Pulse |
| IP Class | IP65 |
| Application | Pedal assist signal detection for e-bike systems |
