Yolin YL-81F-H Ebike Display
Yolin YL-81F-H Ebike Display
No se pudo cargar la disponibilidad de retiro
Compatibility
Compatibility
Avoid the guesswork: if you see the "Yolin" logo on the back of your original display, our replacement is guaranteed to be a perfect fit.
As the original manufacturer of Yolin displays, we maintain the complete technical database for every serial number and protocol configuration. Most compatibility issues arise because sellers offer generic "universal" displays that fail to communicate with your specific e-bike controller.
Why Buy from Yolin?
Why Buy from Yolin?
- Original Yolin Display Manufacturer
- Direct firmware-level compatibility
- Access to protocol database
- Technical support for configuration

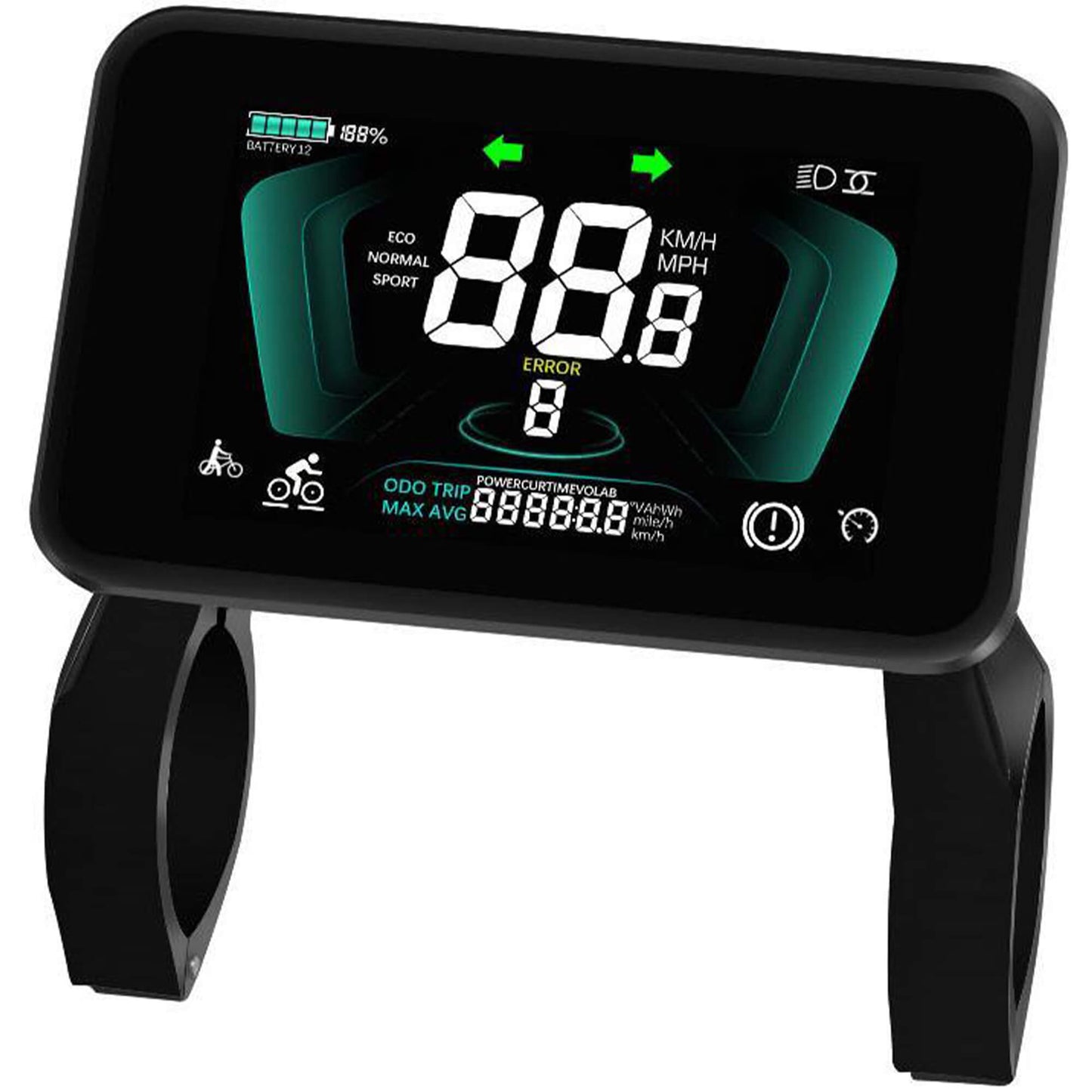

The Yolin YL-81F-H features a landscape screen layout with optional advanced system indicators for dual-drive and dual-battery configurations.
Horizontal Layout for Integrated Cockpit Design
Unlike vertical-format displays such as the YL-80C, YL-81F, and YL-91F, the YL-81F-H uses a horizontal screen structure that aligns naturally with wider handlebar layouts and modern integrated dashboards.
- Landscape real-time speed display (mph/kmh system dependent)
- Multi-level PAS indication
- Battery level and voltage monitoring
- Integrated system error diagnostics
- Clear horizontal information segmentation
Optional Advanced System Indicators
The YL-81F-H supports configurable features depending on system setup:
- Dual motor (dual-drive) indicator
- Dual battery status indication
- Turn signal display integration
- NFC card-based power activation
Optional features such as dual battery or NFC activation require compatible controller support.
Technical Specifications
| Model | Yolin YL-81F-H |
|---|---|
| Screen Orientation | Horizontal (Landscape) |
| Communication Type | UART / CAN |
| Operating Voltage | 36V / 48V / 52V |
| Protocol Compatibility | Standard P1/P2 / 5S / LKLS / Custom |
| Connector Type | 5-pin waterproof round / SM / Custom |
| Mount Compatibility | 22.2 mm / 25.4 mm / 31.8 mm |
| Water Resistance | IP66 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
Share
Need Help with Error Codes?
If you are replacing a display due to an error code, review:
- Yolin Display Error Code Guide
- Error 30 (Communication Error) Explained
- Error 30 Troubleshooting Flow
- Yolin Display Password Recovery Guide
FAQS
How do I know if this display will work with my e-bike?
The easiest way to check is to look at your original display. If you see the "Yolin" on the back, it is guaranteed to be a perfect fit. As the original manufacturer, we have the database to verify the exact protocol. If you no longer have the old display, just send us your e-bike model or controller model, and we’ll check compatibility for you.
Is this plug and play?
Yes, it is 100% Plug and Play. We handle all the technical programming here so you don't have to. There is no need to connect to a computer or change any settings. Just install the display, plug in the connectors, and you are good to go!
What if the display isn't compatible with my bike? Can I return it?
Don't worry! We offer a Compatibility Guarantee. If the display does not work with your e-bike due to compatibility issues, we will provide a full refund. You can shop with zero risk.
Can I change the speed limit or settings (P-parameters) myself?
Yes, while it comes ready to use, our displays allow you to access basic settings (like wheel size, speed limits, or pass-voltage) directly through the menu. We can provide a manual if needed.
Can I choose a specific connector type?
Absolutely! We carry every type of connector. Usually, we send the one that fits your bike's original setup automatically. But if you need a different one, just send us a message before shipping, and we’ll change it for you right away.
