Yolin YL-90T-V Ebike Display
Yolin YL-90T-V Ebike Display
No se pudo cargar la disponibilidad de retiro
Compatibility
Compatibility
Avoid the guesswork: if you see the "Yolin" logo on the back of your original display, our replacement is guaranteed to be a perfect fit.
As the original manufacturer of Yolin displays, we maintain the complete technical database for every serial number and protocol configuration. Most compatibility issues arise because sellers offer generic "universal" displays that fail to communicate with your specific e-bike controller.
Why Buy from Yolin?
Why Buy from Yolin?
- Original Yolin Display Manufacturer
- Direct firmware-level compatibility
- Access to protocol database
- Technical support for configuration

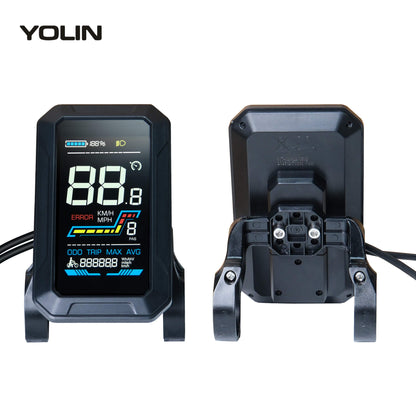

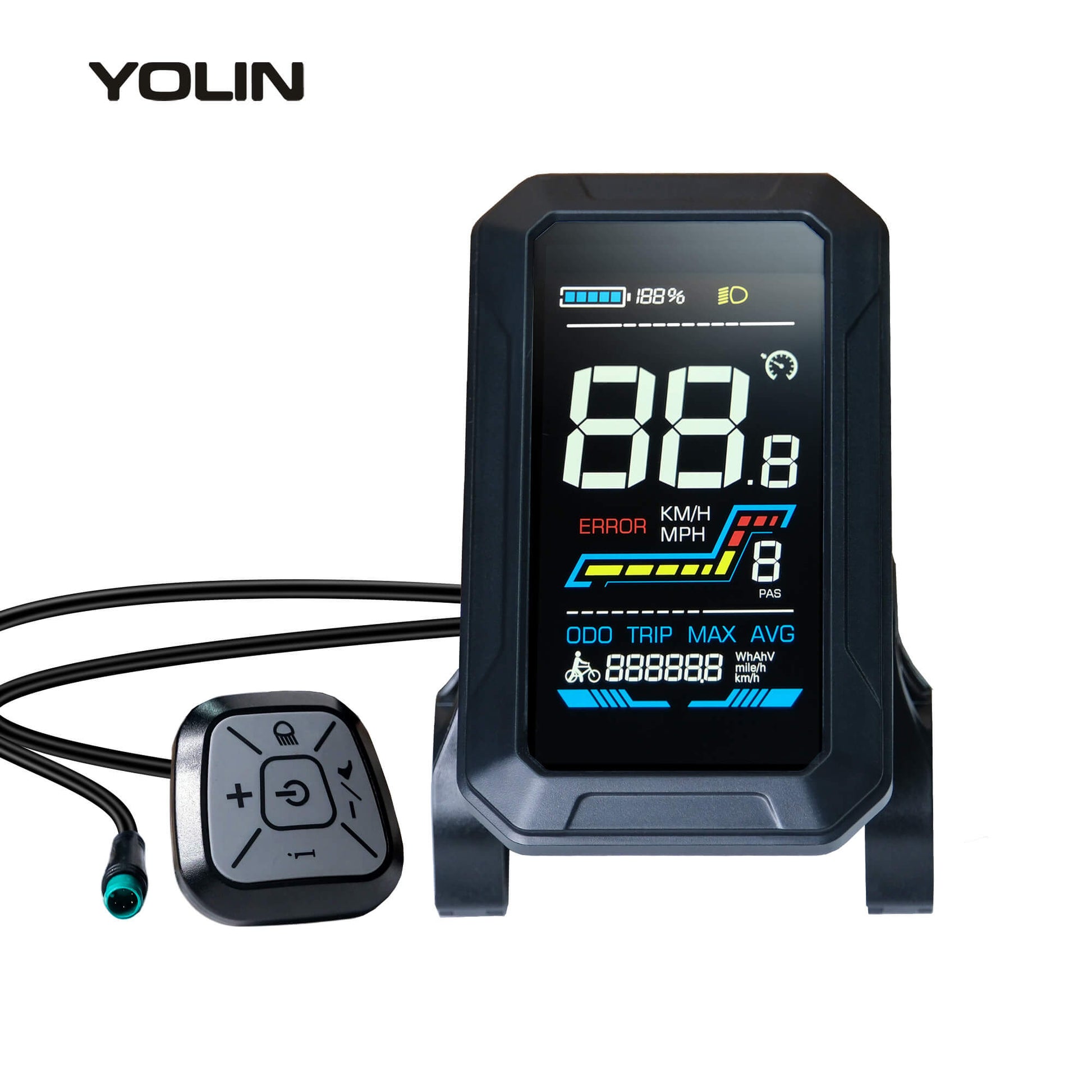

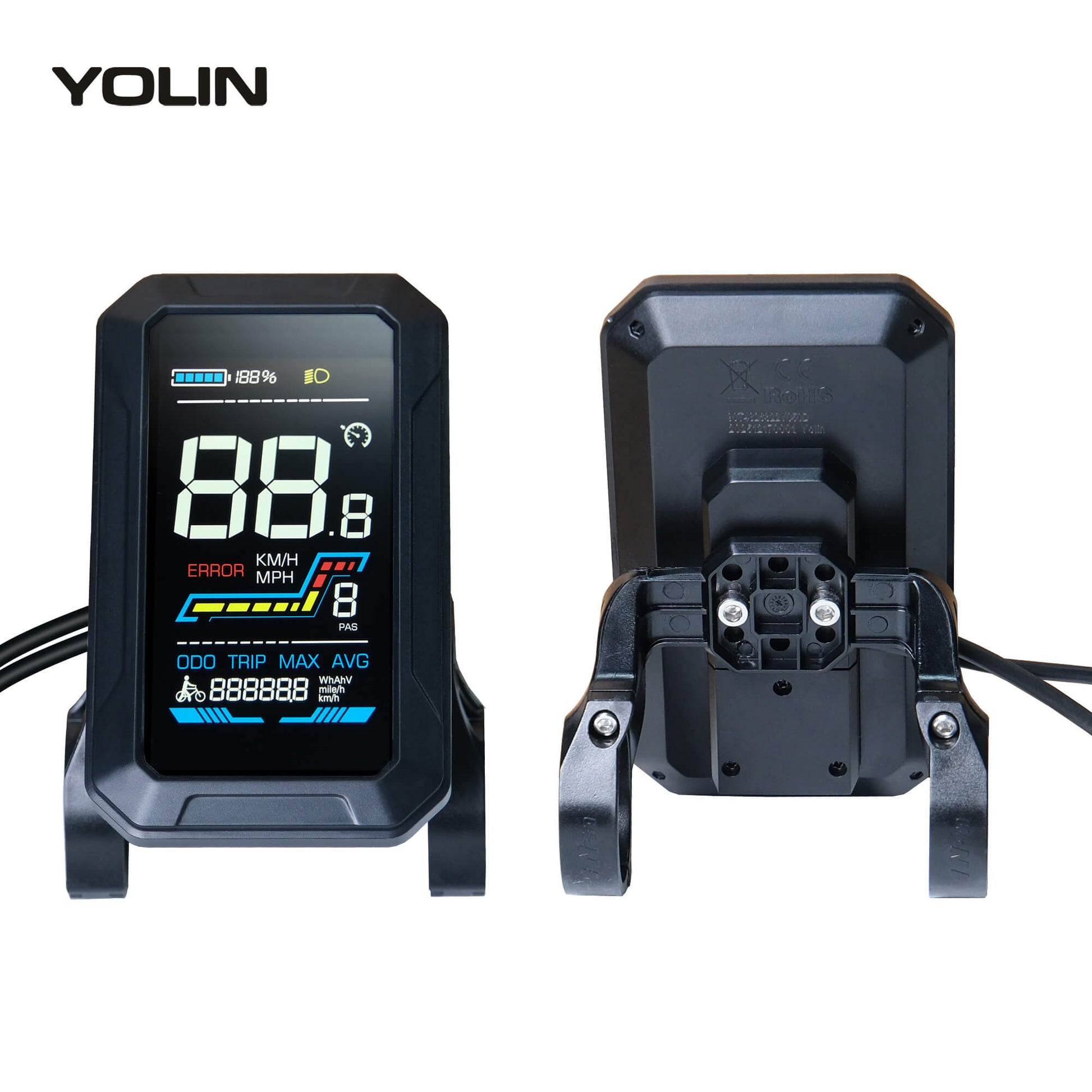

The Yolin YL-90T-V features a 4-inch vertical LCD display with a sport-inspired frame design. Compared with commuter-focused displays, the 90T series introduces a more dynamic visual style.
Vertical Smart Interface Layout
The YL-90T-V uses a vertically structured interface that presents key riding information in a natural top-to-bottom hierarchy. This layout helps riders quickly read speed, assist level, and system status without scanning across a wide display.
- Large vertical real-time speed display (mph/kmh system dependent)
- Multi-level PAS assist indication
- Battery level and voltage monitoring
- Integrated system error diagnostics
- Clear segmented information zones
- Trip distance and odometer tracking
Technical Specifications
| Model | Yolin YL-90T-V |
|---|---|
| Screen Orientation | Vertical (Portrait) |
| Display Type | Advanced LCD interface |
| Communication Type | UART / CAN |
| Operating Voltage | 36V / 48V / 52V |
| Protocol Compatibility | Standard P1/P2 / 5S / LKLS / Custom |

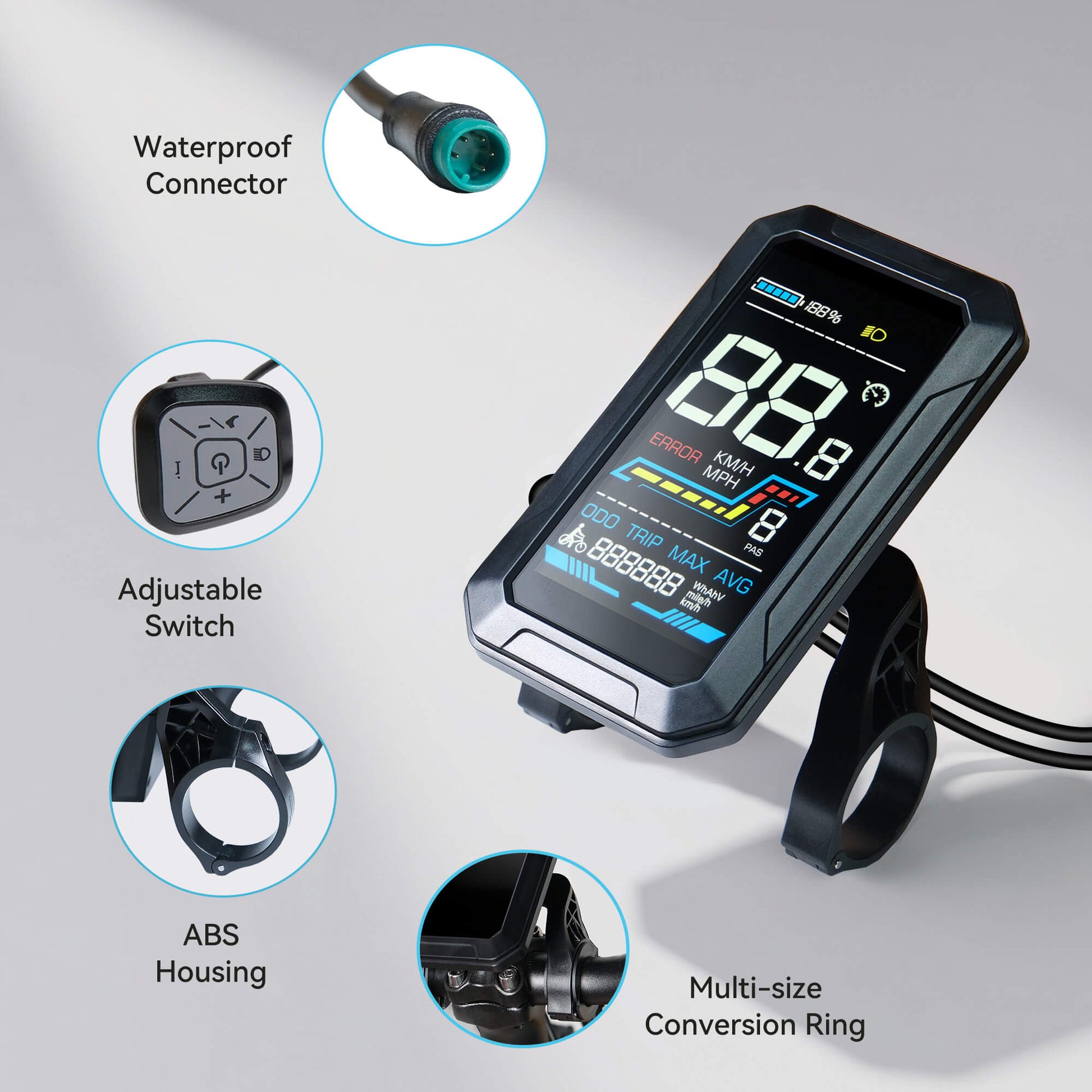

| Connector Type | 5-pin waterproof round / SM / Custom |
| Mount Compatibility | 22.2 mm / 25.4 mm / 31.8 mm handlebar options |

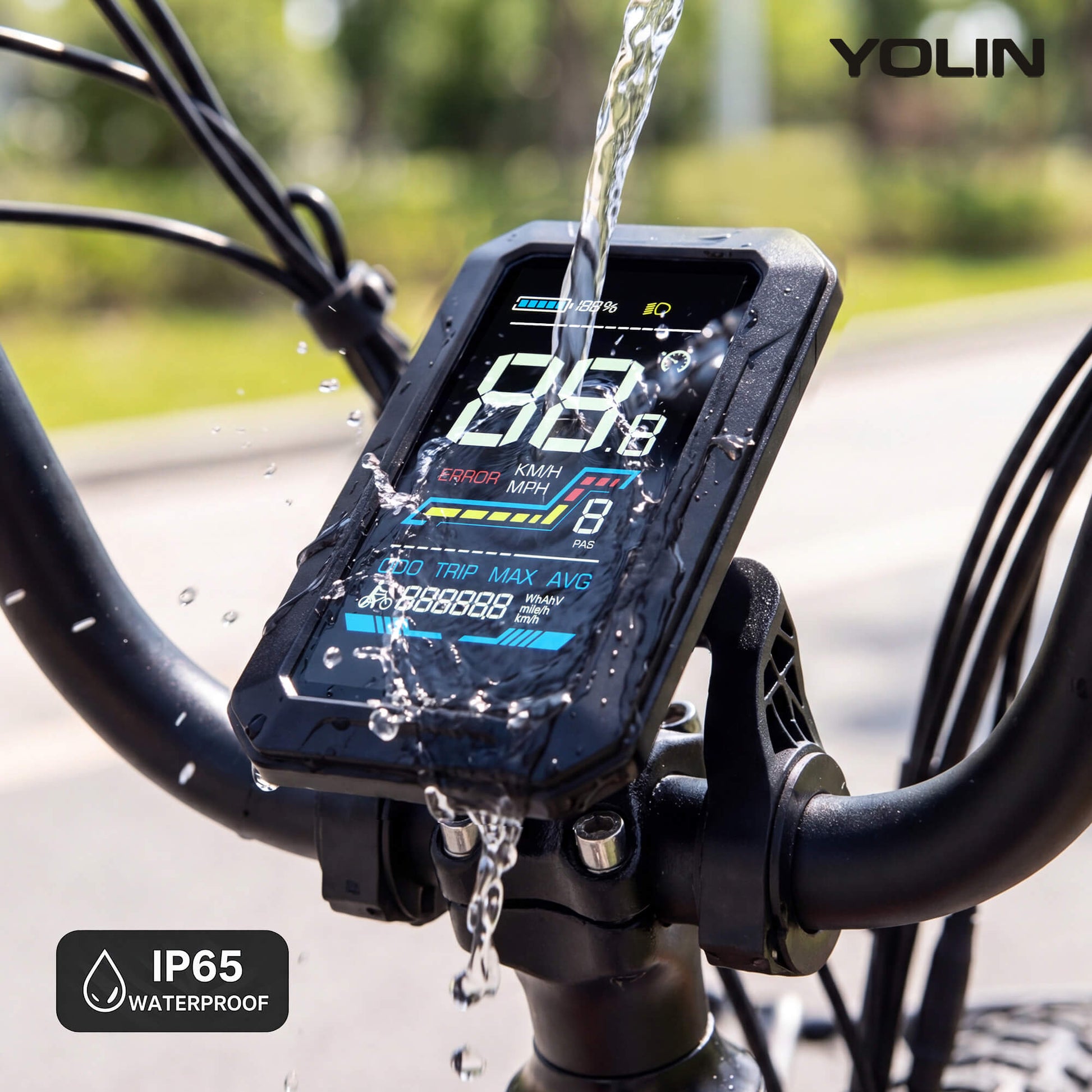

| Water Resistance | IP65 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
Share
Need Help with Error Codes?
If you are replacing a display due to an error code, review:
- Yolin Display Error Code Guide
- Error 30 (Communication Error) Explained
- Error 30 Troubleshooting Flow
- Yolin Display Password Recovery Guide
FAQS
How do I know if this display will work with my e-bike?
The easiest way to check is to look at your original display. If you see the "Yolin" on the back, it is guaranteed to be a perfect fit. As the original manufacturer, we have the database to verify the exact protocol. If you no longer have the old display, just send us your e-bike model or controller model, and we’ll check compatibility for you.
Is this plug and play?
Yes, it is 100% Plug and Play. We handle all the technical programming here so you don't have to. There is no need to connect to a computer or change any settings. Just install the display, plug in the connectors, and you are good to go!
What if the display isn't compatible with my bike? Can I return it?
Don't worry! We offer a Compatibility Guarantee. If the display does not work with your e-bike due to compatibility issues, we will provide a full refund. You can shop with zero risk.
Can I change the speed limit or settings (P-parameters) myself?
Yes, while it comes ready to use, our displays allow you to access basic settings (like wheel size, speed limits, or pass-voltage) directly through the menu. We can provide a manual if needed.
Can I choose a specific connector type?
Absolutely! We carry every type of connector. Usually, we send the one that fits your bike's original setup automatically. But if you need a different one, just send us a message before shipping, and we’ll change it for you right away.
